OPERATION

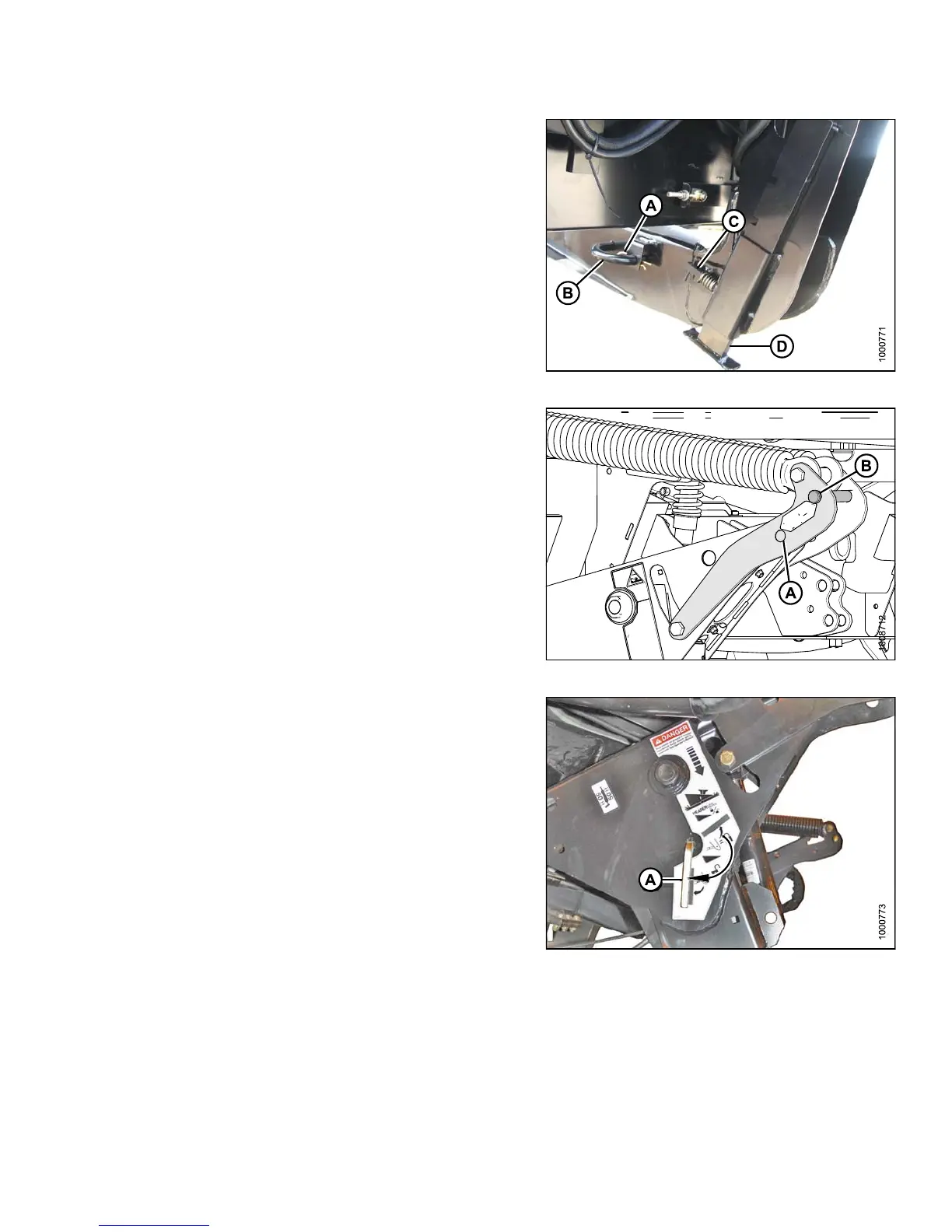

13. Install pin (B) through the header leg (engaging
U-bracket in lift linkage) on both sides and secure with
hairpin (A).
14. Raise header stand (D) to sto rag e position by pulling
spring pin (C) and lifting stand into uppermost position.
Release spr ing pin.
Figure 4.133: Header Leg
15. Remove clevis pin from storage position (B) in linkage
and insert into hole (A) to engage floa t springs. Secure
with hairpin.
Figure 4.134: Header Float Linkage
16. Disengage safety prop by turning lever (A) downwards
to rele ase and lower s top until lever loc ks into
vertical position.
17. Repeat for opposite safety prop.
Figure 4.135: Safety Prop
147649 223 Revision A
