MacDon M155 - Setting the Windrowers Tire Size

OPERATOR’S STATION
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on CDM to
enter Prog ramming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrow to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.

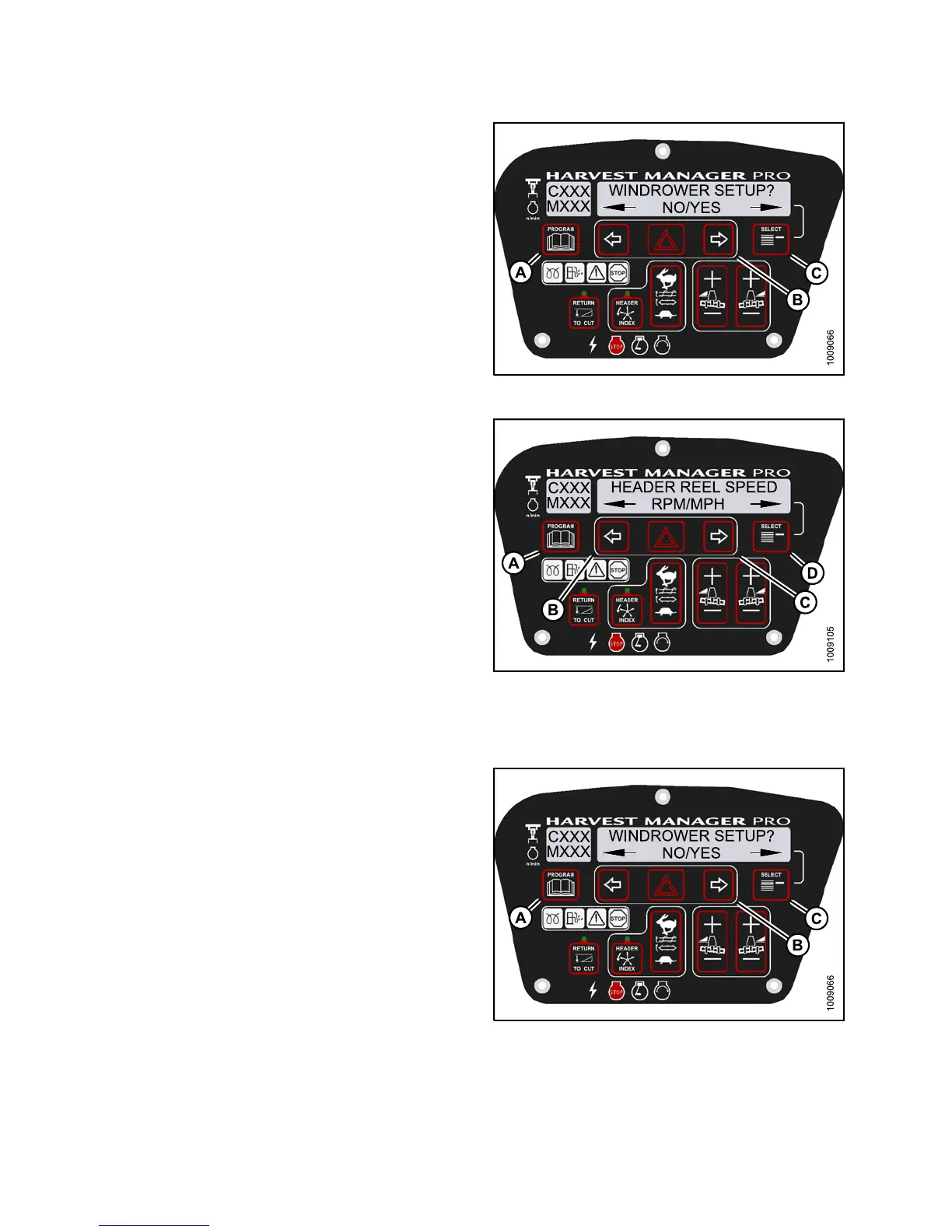

Figure 3.123: M155 CDM Programming Buttons
4. Press SELECT (D) until HEADER REEL SPEED? is
displayed on the upper line.
• RPM/MPH or RPM/KPH is displayed on the lower
line.
5. Press left (B) or right (C) arrow to select either Imperial
or Me tric units. Press SELECT (D).
6. Press PROGRAM (A) to exit Programming Mode or
press SELECT (D ) to proceed to next WINDROWER
SETUP action.
Figure 3
.124: M155 Reel Speed Display
Settin
g the Windrower’s Tire Size
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrow to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.
Figure 3.125: M155 CDM Programming Buttons
147649
1
14
Revision A
