OPERATOR’S STATION
3.17 Windrower Controls
Console Controls:
A – TURN SIGNALS activate turn signals on windrower
and header
• Push-ON / Push-OFF
B – GROUND SPEED LEVER (GS L) controls speed and
direction of movement
•F:Forward
• N: NEUTR AL
• N-DETENT: Engages Neutral Interlock, and applies park
brake when steering locked in center
• R: Reverse
C –HAZARD WARNINGLIGHTS activate signals on w indrower
and header
• Push-ON / Push-OFF
D – GROUN D SPEED RAN GE SWITC H shifts transmission
speed range
• High range: 0–23 mph (37 km/h)
ENGINE-FORWARD ONLY
• Mid range: 0–16 mph (25.7 km/h)
CAB-FORWARD ONLY
• Low range: 0–11 mph (17.7 km/h)
E – N-Detent

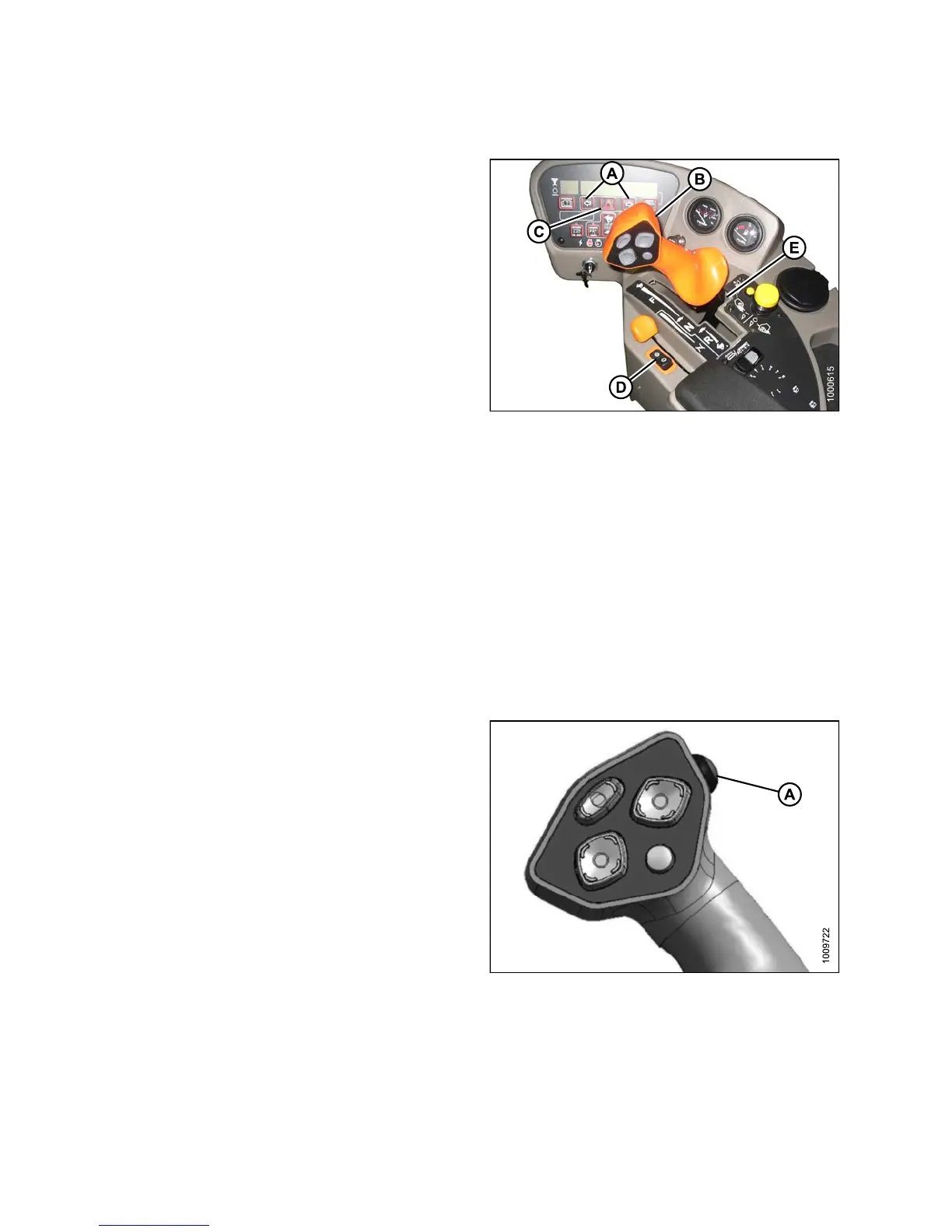

Figure 3.50: Console Controls
Autosteer Con
trol:
A – AUTOSTEER E
NGAGEMENT SWITCH
engages/dis
engages the automated steering system (if
compatible s
ystem is in stalled)
• ENGAGE: Clic
k to engage
• DISENGAGE:
Turn steering wheel or click to disengage
Figure 3.51: Autosteer
