OPERATION
4.6 Operating with a D-Series Header
The M155Self-Propelled Windrower is factory-equipped to
run an D-Series Draper Header.
If in stallin g a HC10 Hay Conditioner, Reverser kit #B4656
is recommended. If necessary, obtain the recommended
kit from your MacDon Dealer and install it in accordance
with the instructions supplied with the kit.
Refer to the following procedures according to the
center-link installed on the windrower:
• Attaching a D-Series Header: Hydraulic Center-Link
with Optional Self-Alignment, page 214
• Attaching a D-Series Header: Hydraulic Center-Link
without Self-Alignment, page 219
• Attaching a D-Series Header: Mechanical Center-Link,
page 225

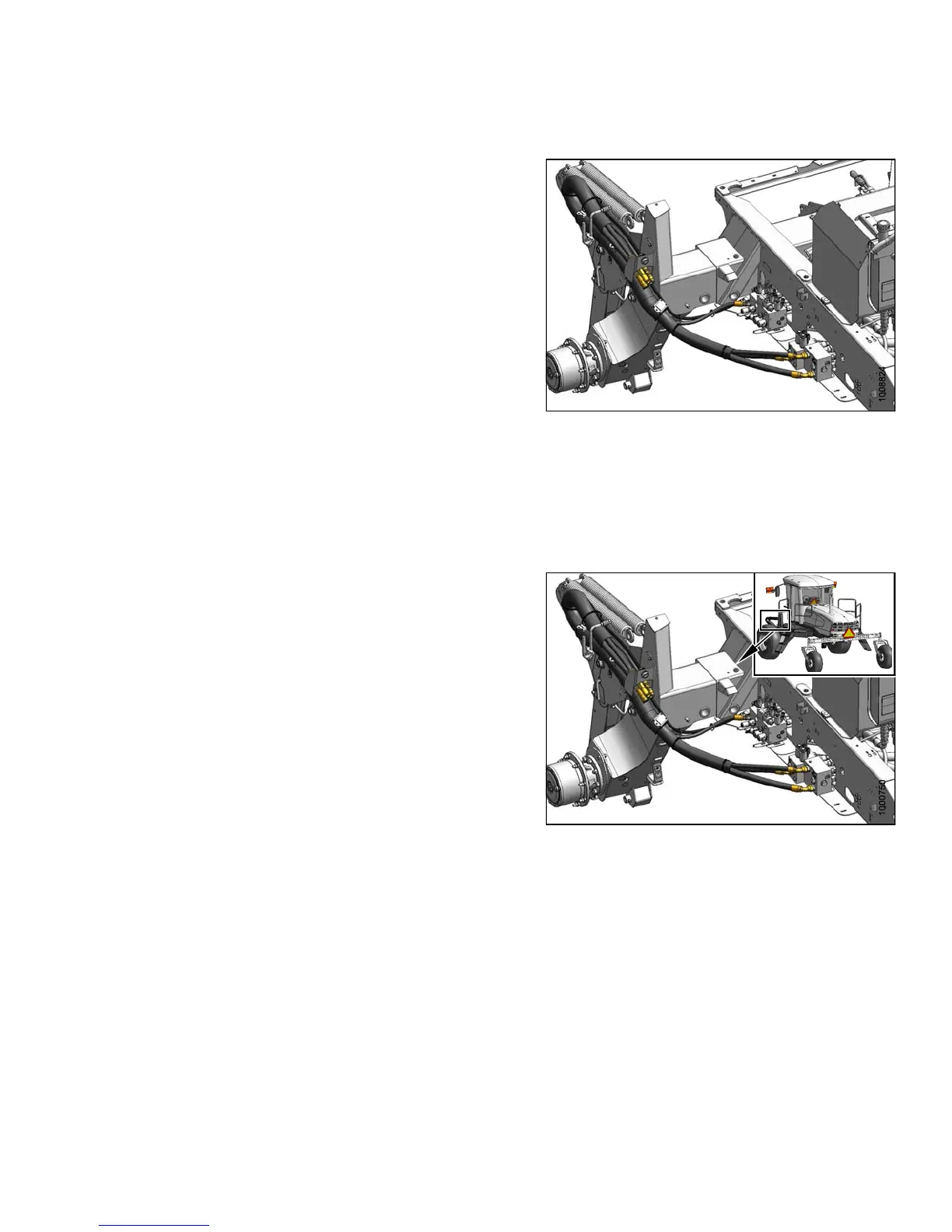

Figure 4.277: Draper Header Hydraulics
4.6.1 Configuring
Hydraulics
The windrower must be fitted with a draper drive basic kit to operate D-Series draper headers.
Windrowers equipped with D-Series hydraulics have four
header drive hoses on the left cab-forward side.
Figure 4.278: Draper Header Drive Hydraulics
