MAINTENANCE AND S ERVICING
7. Match slots on new bulb (B) with lugs (D) in optical unit
and insert bulb into unit.
8. Secu re bulb with wire reta iner (A) .
9. Push wire into connector (C).

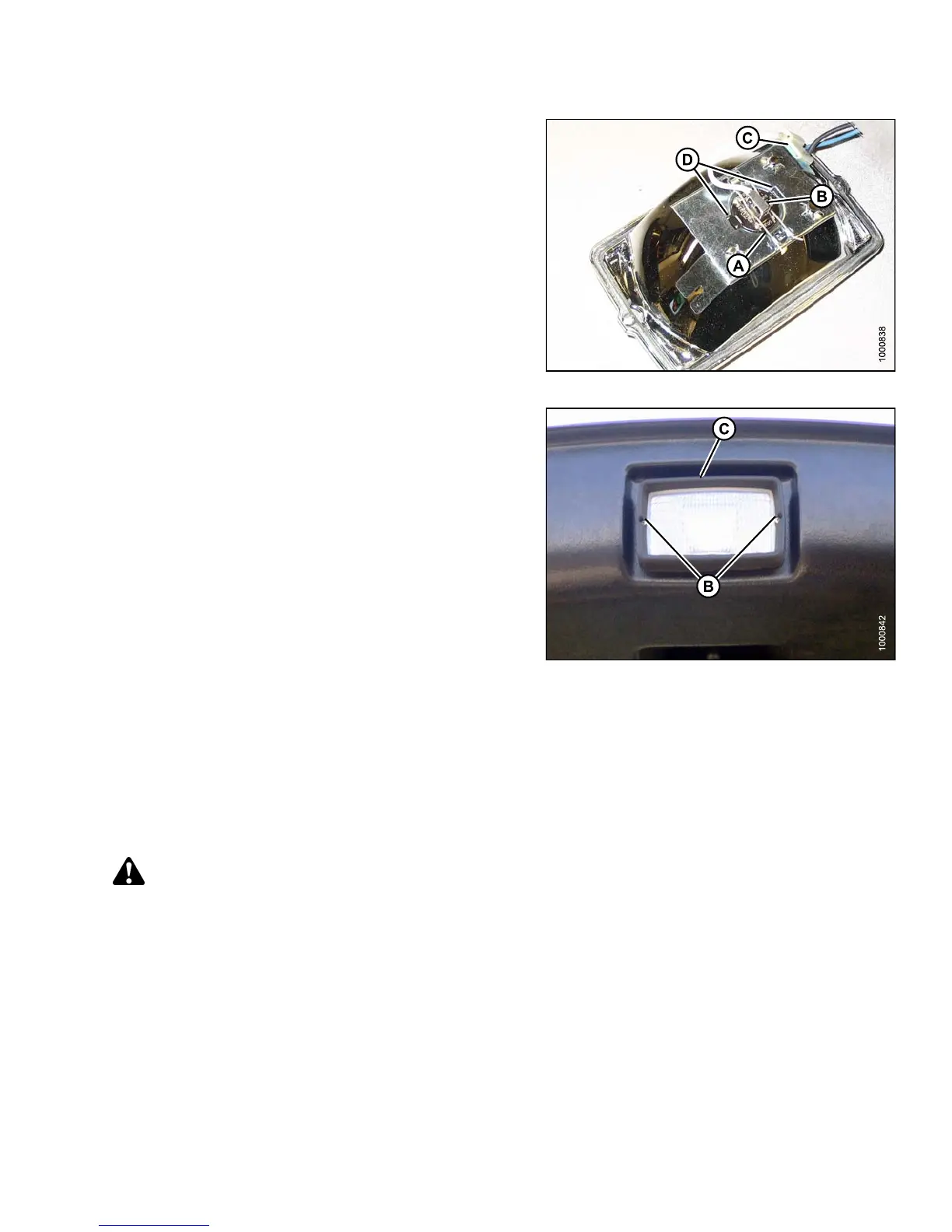

Figure 5.146: Flood Light Assembly
10. Position light into light receptacle, ensuring top is up
and secure with bezel (C) and screws (B).
Figure 5.147: Forward Flood Light
High-Intensity Discharge (HID) Auxiliary Lig hting (Optional - MD #B5596)
Two optional HID lights provide additional lighting during field operation. They operate only in cab-forward mode.
Adjustin g High-Intensity Discharge (HID) Auxiliary Lights (if Installed)
If ins
talled, HID au xiliary lights are be s t adjusted with the machine in the field (or equivalent) to suit
Opera
tor preference.
DANGE
R
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator ’s seat for any reason.
147649 383 Revision A
