OPERATOR’S STATION
Display Warnings and Alarms
Informs Operator of abnormal windrower conditions.

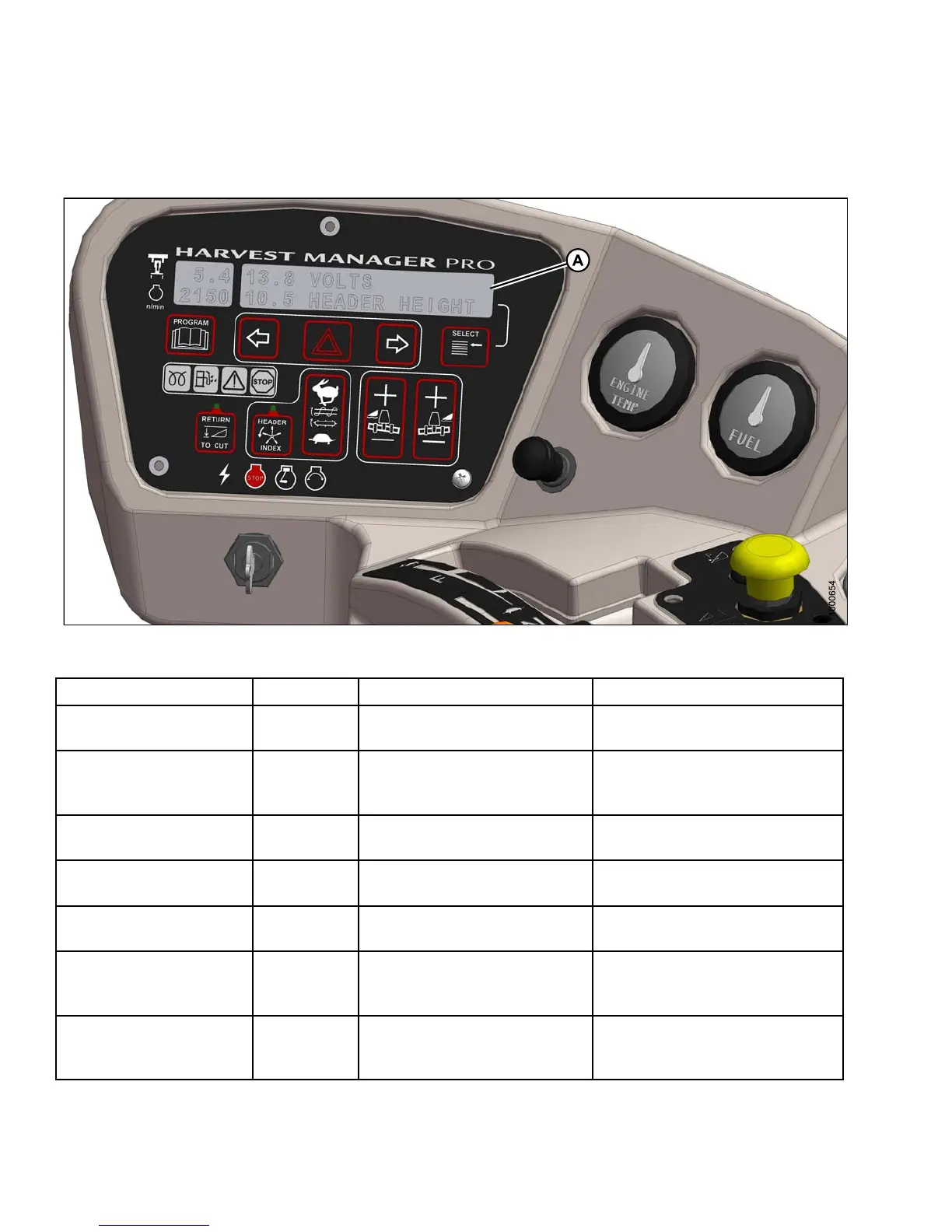

Figure 3.68: CDM Display Warnings and Alarms
Display (A) Flashing Alarm Tone Description
BRAKE OFF
X
Short beep with each flash
Engine running, brake solenoid
not activated
BRAKE ON
X
Short beep with each flash
Ground speed lev er (GSL) out of
N-DETENT, but interlock switch
remains closed to apply brake
BRAKE
SW FAILURE X
Short
beep with each flash
Ignit
ion O N / engine not running ,
brake
switch and relay closed
CAB-FORWARD SW ON/
ENG-FORWARD SW ON
X
Messages fl ash alternately
Both seat switches activated
CENTER STEERING
Beeps at 2 per second
GSL or interlock switches not
closed with key ON / engine OFF
DI
SENGAGE HEADER
RE
-ENGAGE <1800
RP
M>
X None
R8
0/R85 - Engine rpm above
18
00 rpm when engaging header
ENGINE AIR FILTER
X
Single loud tone for 10 seconds,
Repeats every 30 minutes until
condition is corrected
Engine air filter requires servicing
147649 86 Revision A
