MacDon M155 - Detaching a D-Series Header

OPERATION

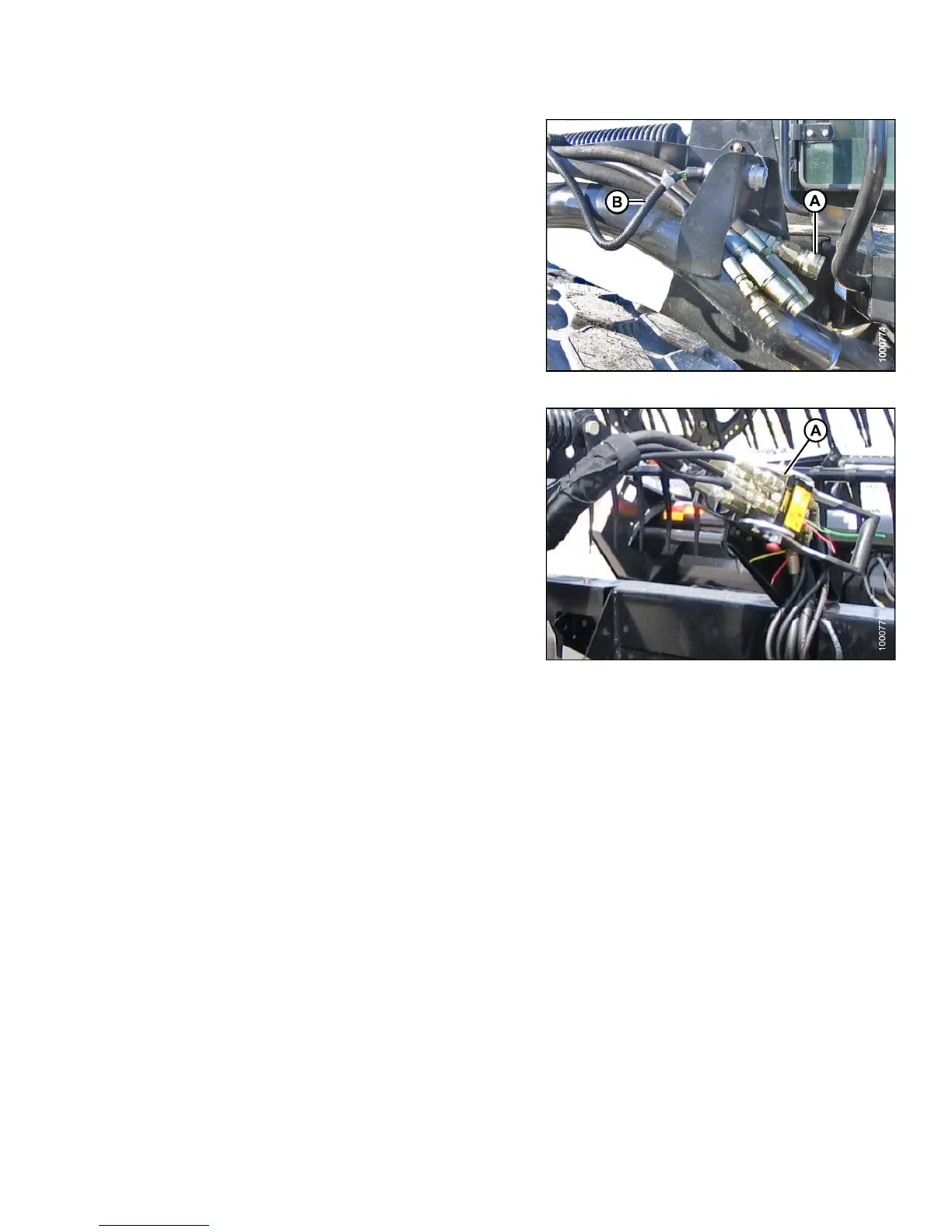

19. Connect header drive hoses (A) and electrical
harness (B) to header. Refer to the draper header
operator’s manual.
Figure 4.149: H e ader Dri ve Ho ses and Harn es s
20. Connect reel hydraulics (A) at right cab-forward
side of windrower. Refer to the draper header
operator’s manual.
Figure 4.150: Reel Hydraulics
4.5.2 D etaching a D-Series Header
Refer t
o the procedure that is appropriate for the center-link installed on the windrower:
• Detach
ing a D-Series Header: Hydraulic Center-Link, page 230
• Detach
ing a D-Series Header: Mechanical Center-Link, page 233
147649 229 Revision A
