MAINTENANCE AND SERVICING
2. Unlock latch (A) and move platform (B) toward open
position. Do NOT lock in full aft position.

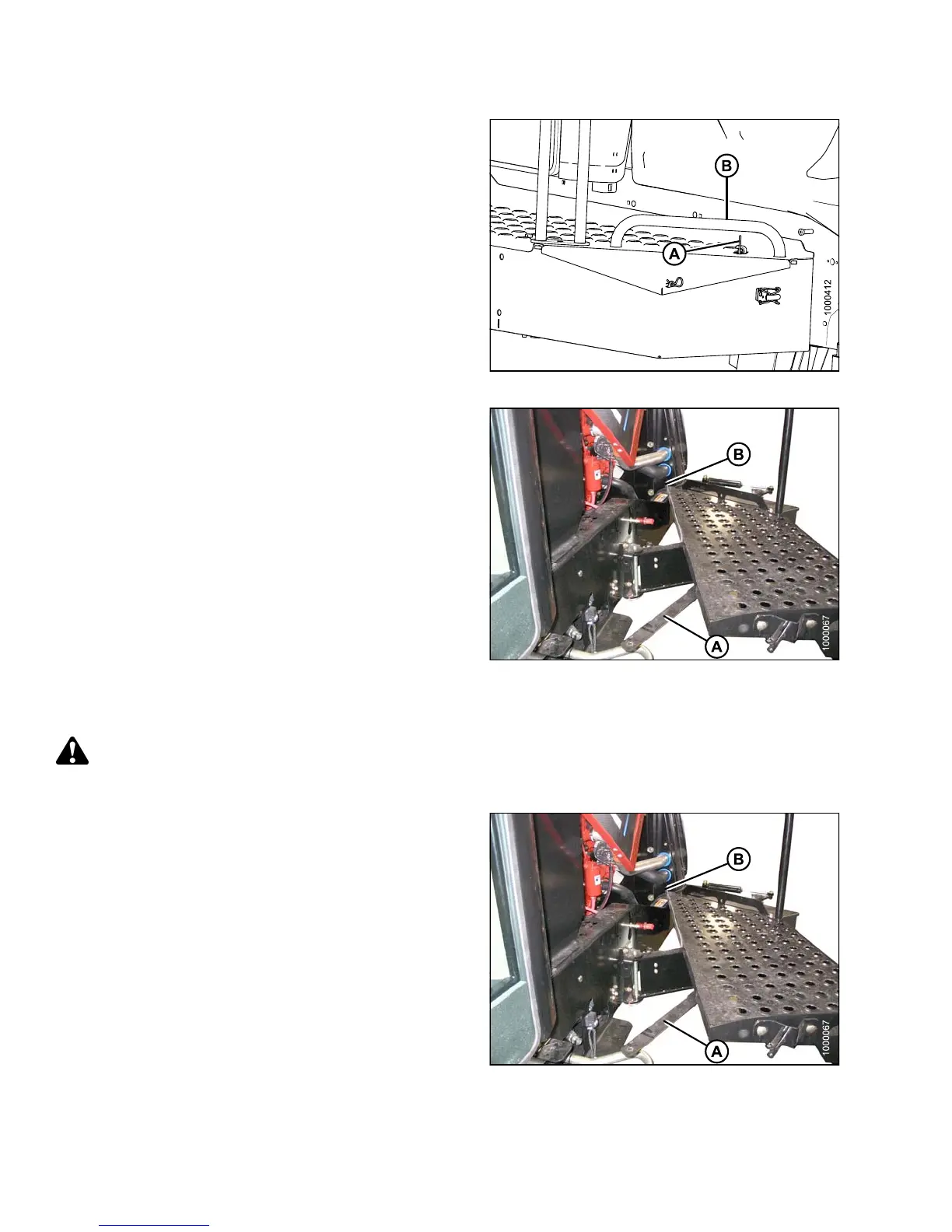

Figure 5.10: Platform Latch
3. Remove the nut and bolt that secure link (A) to the
frame. Swing link (A) out of the way.
4. Pull the front (cab-forward) end of platform away from
frame while moving it towards the wa lkin g beam. The
aft corner of platform (B) should project slightly into the
engine bay when the opening is optimum.
Figure 5.11: Platforms
5.3.4 Closing Platforms (Major S ervice Position)
CAUTION
Do NOT stand on an unlocked side platform. It is unstable and may cause you to fall.
1. Swing link (A) all the way forward.
2. Push the front (cab-forward) end of platform towards
the frame while moving the pla tform forward
(cab-forward).
3. Position link (A) on bracket and install bolt and nut.
Tighten enough so that link can still swivel on bracket.
Figure 5.12: Platforms
147649 312 Revision A
