MacDon M155 - Fore-Aft Isolator Lock; Seat Tilt

OPERATOR’S STATION
3.3.5 Fore-Af
tIsolatorLock
Locks sea t fore-aft isolator.
LOCK: Push lever (A) down.
UNLOCK: Pull lever (A) up.

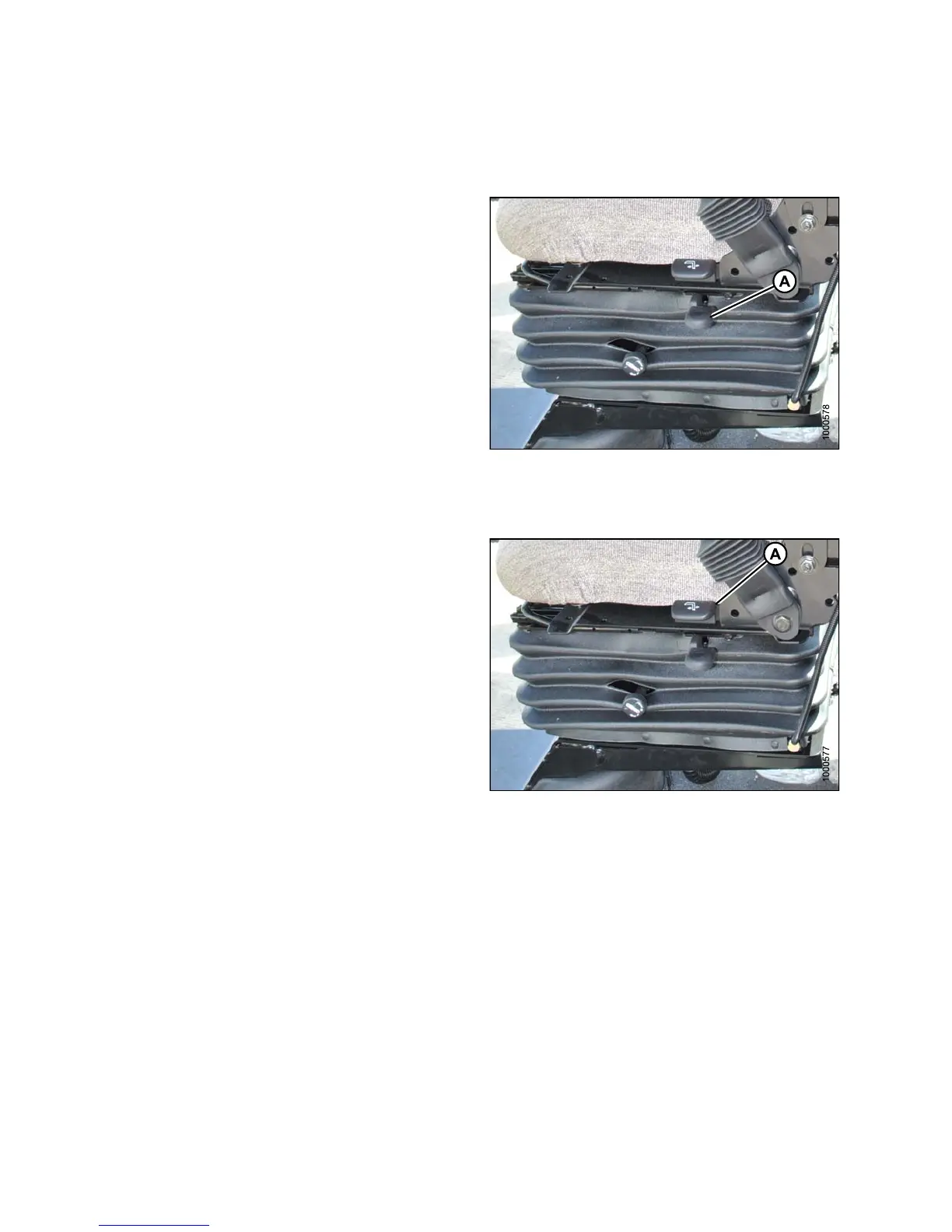

Figure 3.8: Fore-Aft Isolator Lock
3.3.6 Seat Tilt
To adjust seat tilt:
1. Pull lever (A) up to release.
2. Position seat back as desired.
3. Release lever (A).
Figure 3.9: Seat Tilt
