3.19 Cab Display Module (CDM)
3.19.1 Engine and Windrower Functions

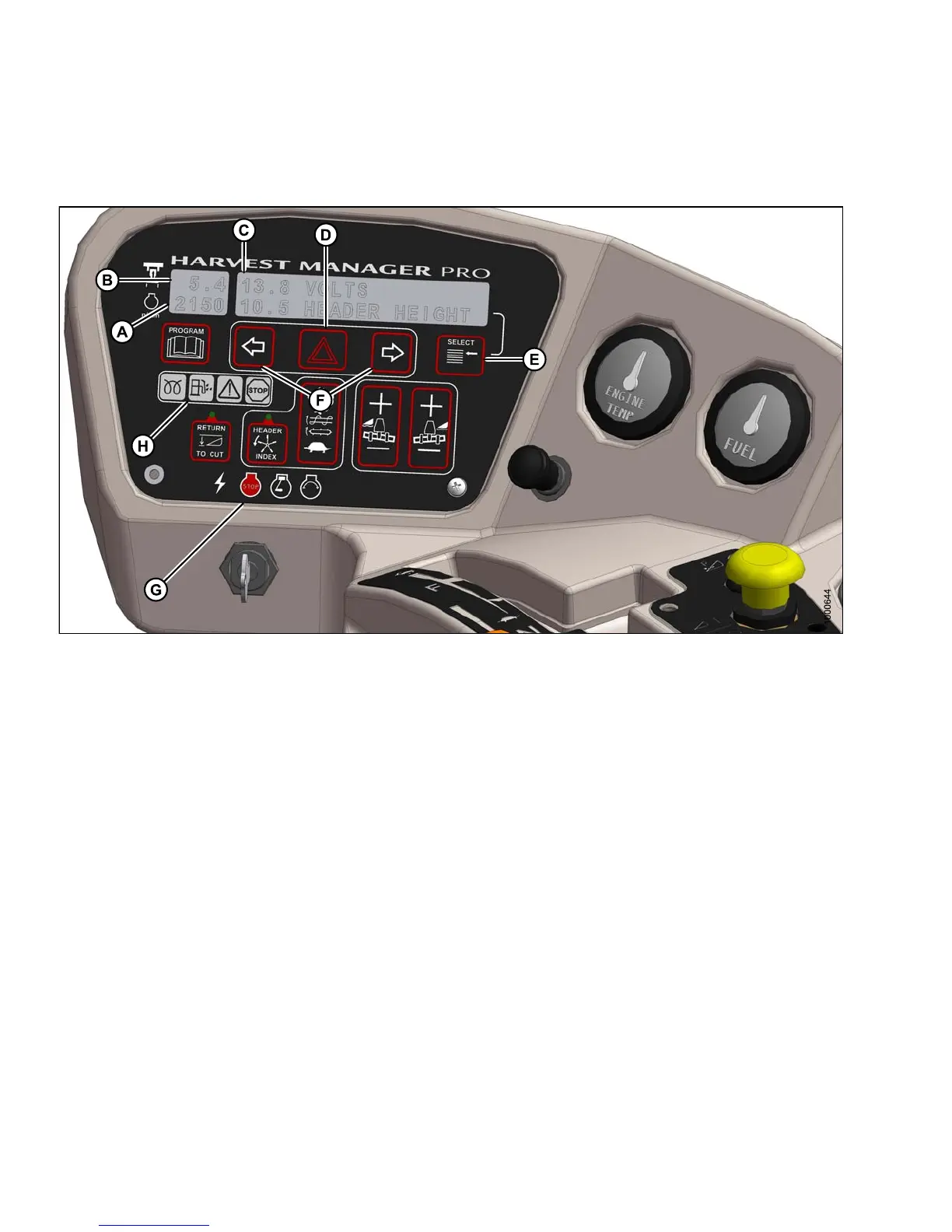

Figure 3.64: Cab Display Module (CDM) Engine and Windrower Functions
A – Engi
ne rpm
B –Grou
nd Speed: mph or km/h
C –DISP
LAY: Engine/windrower functions
D –HAZ
ARD WARNING LIGHTS switch: Activates hazard warning lights, cancels turn signal
E – SEL
ECT switch: Allows operator to select display item on lower line. Push to SELECT
F –TUR
N S IGNAL switches: Activates turn signals on windrower and header Push-ON / Push-OFF
G –IG
NITION switch positions: Accessory / Stop / Run / Start
H –En
gine warning lights: Engine Pre-Heat / Water In Fuel / CAUTION / Stop Engine
