OPERATOR’S STATION
6. Press SELECT (D) until REEL FORE/AFT is displayed
on the upper line.
• ENABLED/L O C KED is displayed on the lower line.
7. Press left (B) arrow to enab le REEL FORE/AFT
control switch.
Press right (C) arrow to lock REEL FORE/AFT
control switch.
8. Press PROGRAM (A) to exit Programming Mode, or
press SELECT (D ) to proceed to next WINDROWER
SETUP action.

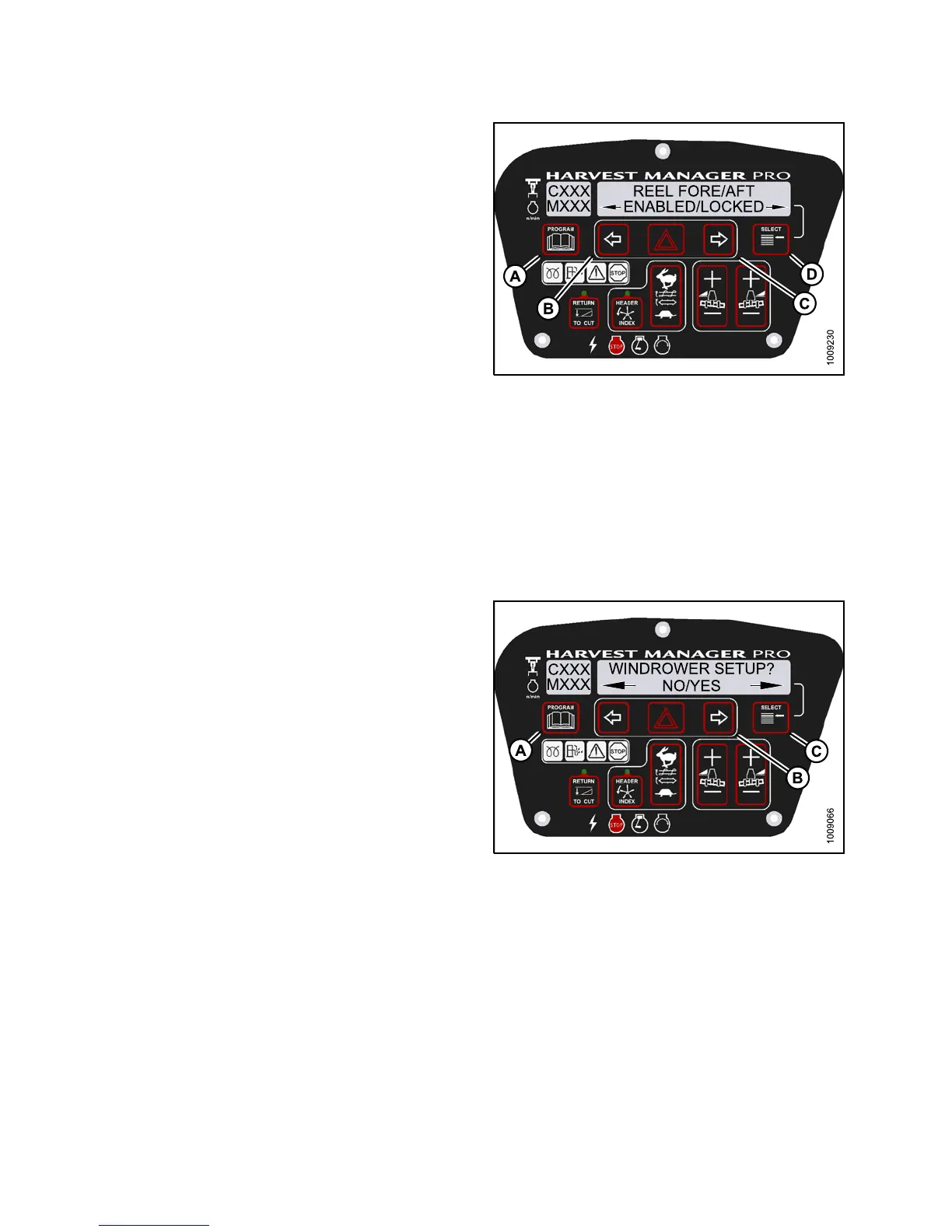

Figure 3.15
1: M155 Reel Fore-Aft Control Lock
Activatin
g the Header Tilt Control Lock Out
NOTE:
• The header MUST be attach ed to the windrower to perform this proce du re. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 213.
• This procedure requires installation of the optional hydraulic center-link (MD #B4650).
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrow to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.
Figu
re 3.152: M155 CDM Programming Buttons
147649 126 Revision A
