MAINTENANCE AND S ERVICING
1. If platform is latched in the open position, push latch (A)
to unlock it.
2. Grasp handle (B) on platform and push forward until it
stops and latch (A) engages.
NOTE:
Ensure the platform is latched properly before using.

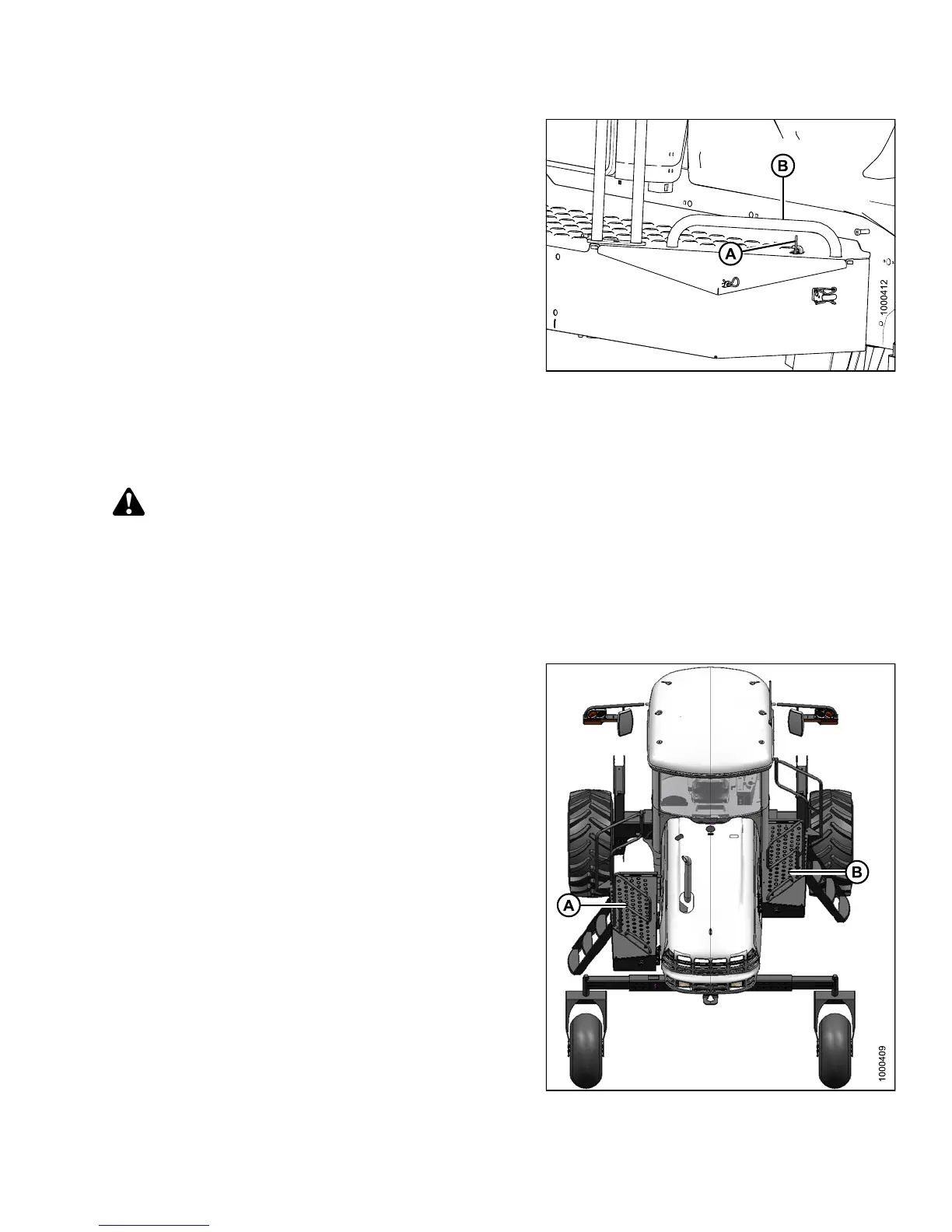

Figure 5.8: Platform Latch
5.3.3 O pening Platforms (Major Service Position)
To improve
access to the hydraulics plumbing or battery, the platforms can be swung away from the windrower.
CAUTION
Do NOT stand on an unlocked side platform. It is unstable and may cause you to fall.
1. Open the hood. Refer to 5.2.1 Opening Hood (Lower Position), page 306.
IMPORTAN T:
Failure to open hood will result in damage to the hood when the platform is moved.
NOTE:
This procedure describes how to o pen t he
cab-forward left platform (A): use the same
procedure for the right platform (B).
Figure 5.9: Platforms
147649 311 Revision A
