OPERATION
4. Push up on actuator rod and lock pin should lift with
the handle.

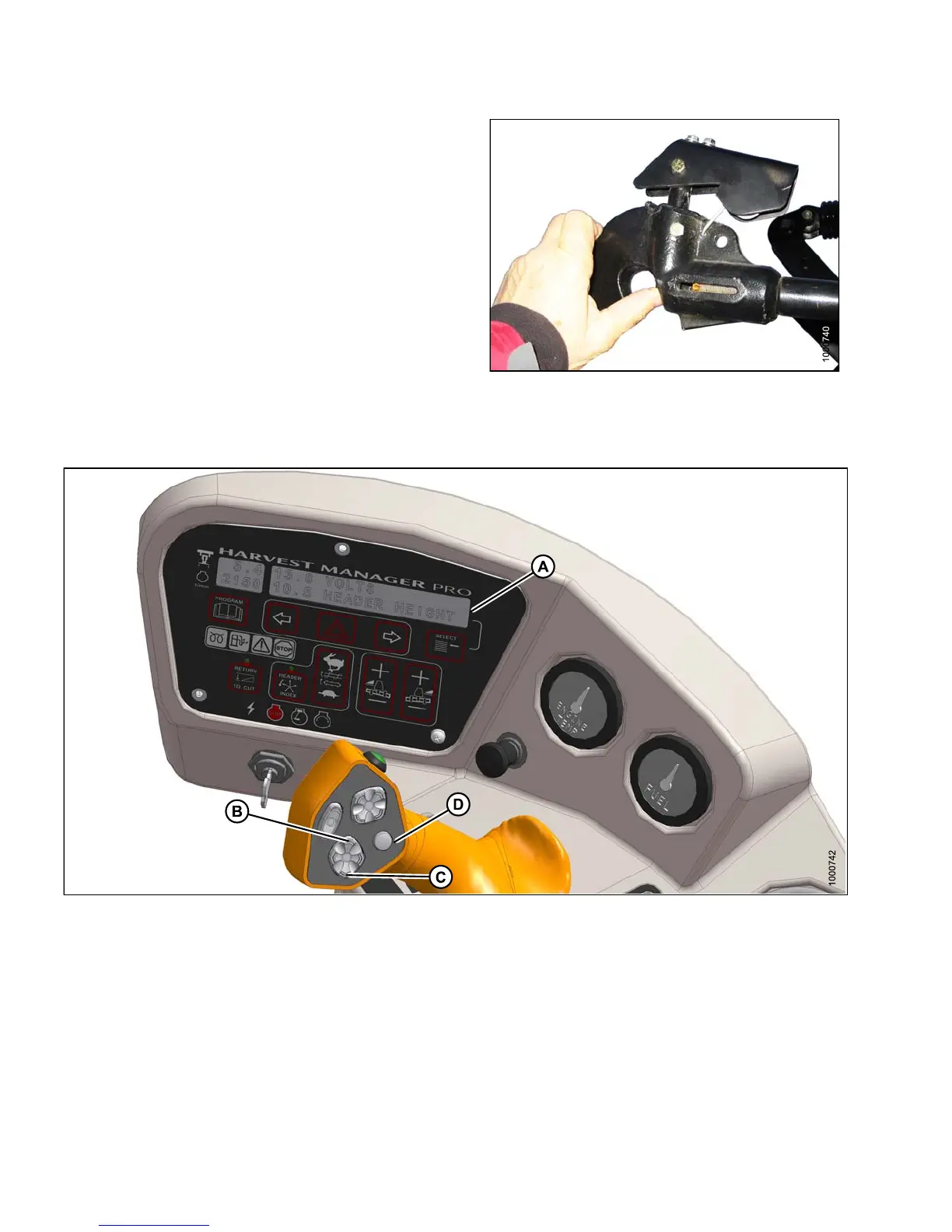

Figure 4.96: Center-Link Hook
4.4.6 Cutting Height
Figur
e 4.97: O perator Console
Cutting height is adjusted by raising or lowering the header with t he HEAD ER UP (B) or HEADER DOWN (C)
switches on the ground speed lever (GSL).
The cab display module (CDM) indicates header height with a reading on the DISPLAY (A) lower line between 00.0
and 10.0, with 00.0 being on the ground.
Use DISPLAY SELECTOR switch (D) to display the current s etting.
147649 206 Revision A
