3.18.4 Consol
e Header Switches
The operator’s console contains s witches for the following header functions:
Deck Shift/Float Preset Switch
Draper Header with Deck Shift Option
• Controls deck shifting and float settings for double
windrowing options with a draper header

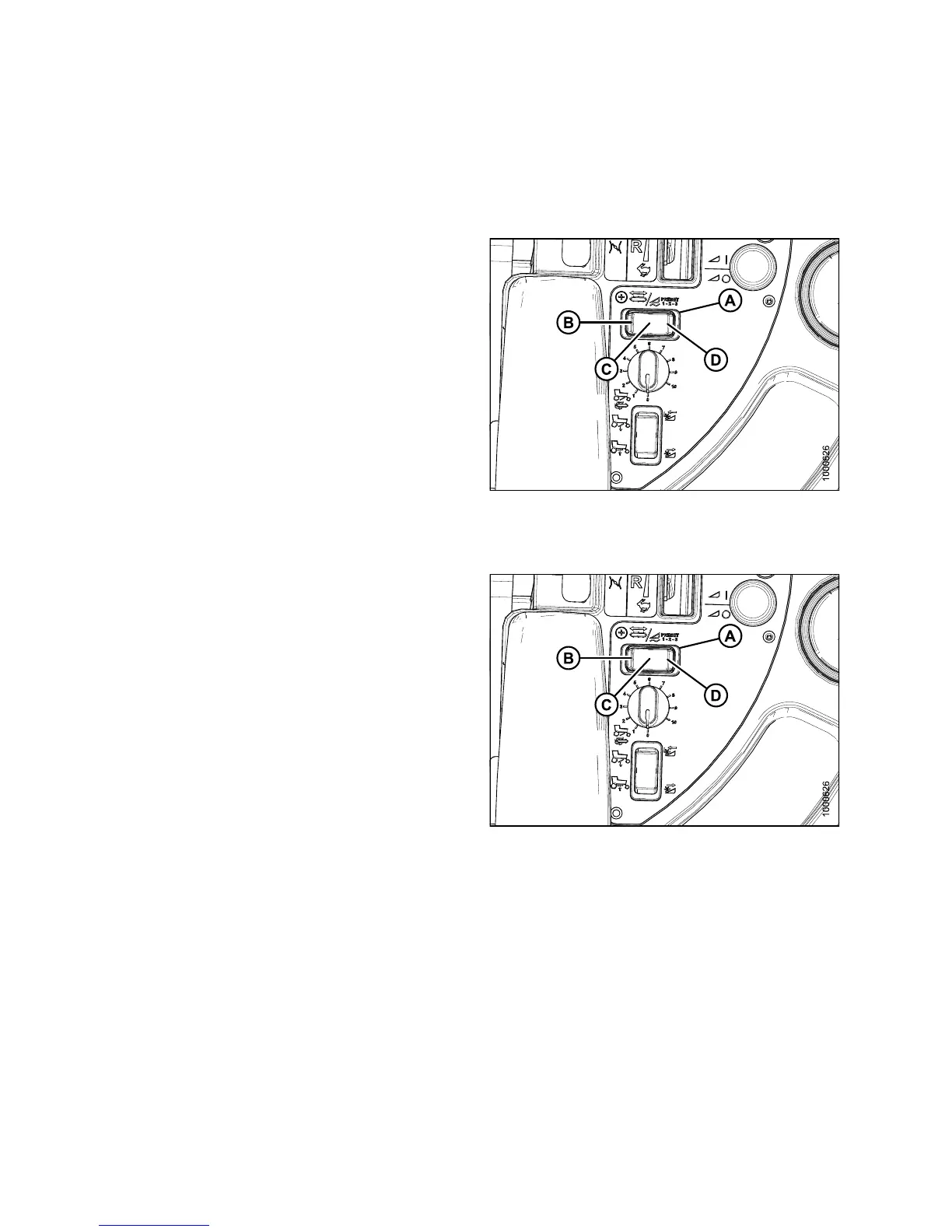

Figure 3.61: Header Switches
A - Deck Shift/Float Preset Switch B - Left Side Delivery
C-Center
Delivery
D-RightS
ide Delivery
Draper Header with Fixed Decks/Auger
Header/Rotary Header
• Selects pre-programmed header float setting s. Ref er to
Float Options, page 198 to learn how to preset the float.
NOTE:
Refer to the section in this manual that is specifictoyour
header for detailed switch operating modes.
Figure 3.62: Header Switches
A - Deck Shift/Float Preset Switch
B - Float Preset 1
C-FloatPres
et 2
D - Float Preset 3
147649
