MAINTENANCE AND S ERVICING
Closing Cooler Box Screen
1. Unhook the support rod and store it in the screen door.
Close screen access door (B) and engage latch (A).
2. Close the hood. Refer to 5.2.4 Closing Hood (Highest
Position), page 308.

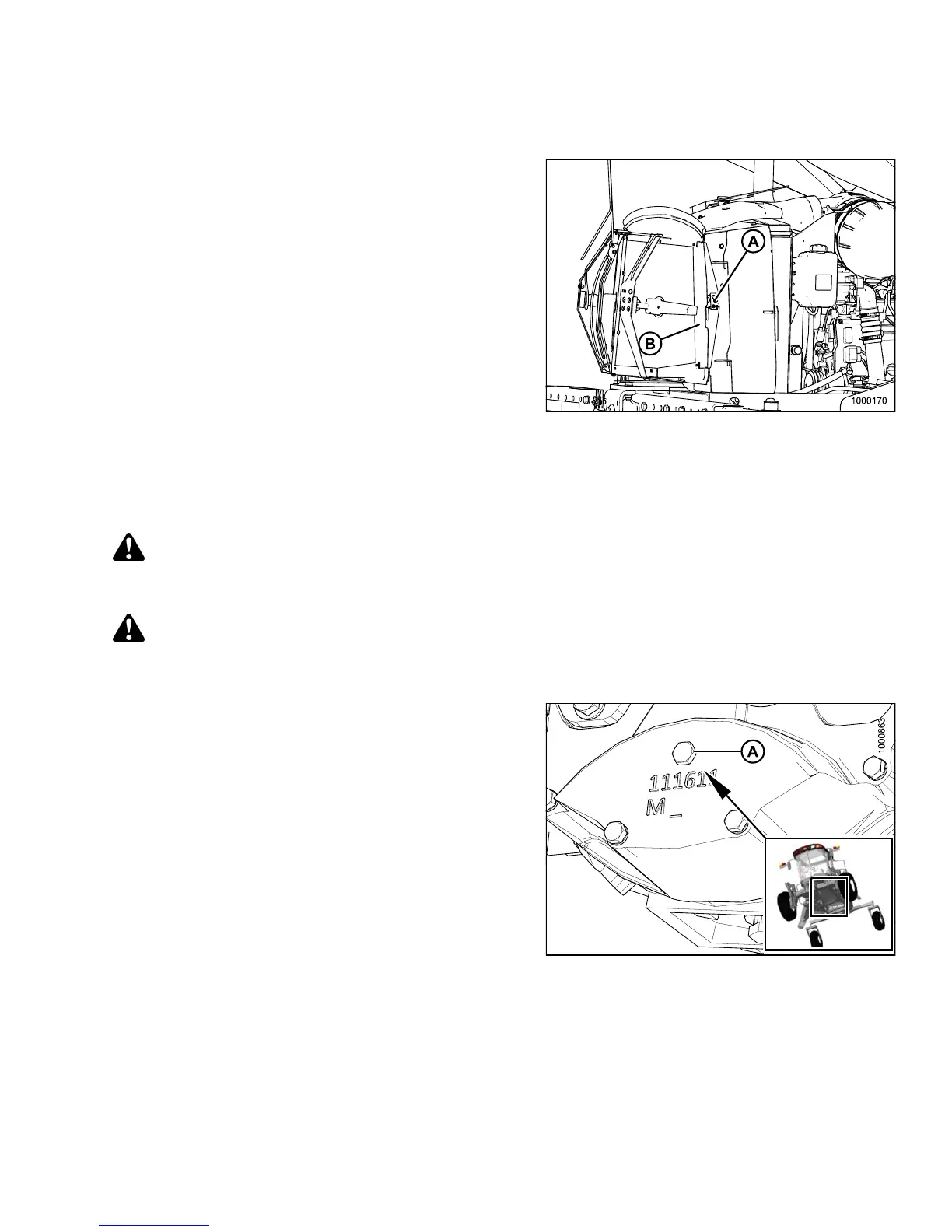

Figure 5.107: Engine Cooling System
Gearbox
Checking
Lubricant Level and Adding Lubricant
CAUTION
Park on a flat, level surface, header on the ground, and the ground speed lever in N-DETENT position and
steering wheel locked.
DANGER
To avoid bo
dily injury or death from unexpected startup of the machine, always stop the engine and remove
the key fro
m the ignition before leaving the operator’s seat for any reason.
1. Check the lubricant level every 50 hours as follows:
a. Park the windrower on level ground, shut down
engine, and remove key.
b. Remove check plug (A). The lubricant should be
visible through the hole or slightly running out.
NOTE:
To v i e w l
ubricant specifications, refer to 8.2.3
Lubrica
nts, Fluids, and Syste m Ca pacities, p age
466.
Figure
5.108: Gearbox Lubricant Check Plug
147649 363 Revision A
