OPERATOR’S STATION
4. Press SELE CT (D) until OVERLOAD PRESSURE? is
displayed on the upper line.
• The curre nt overload pres sure is display ed on
lower lin e.
NOTE:
Pressure range is 2500–5000 psi (17,237–34,474
kPa).
5. Press left (B) or right (C) arrows to set hydraulic
overload pressure. Press SELECT (D).
6. Press P ROGRAM (A ) to exit Prog r am ming Mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.

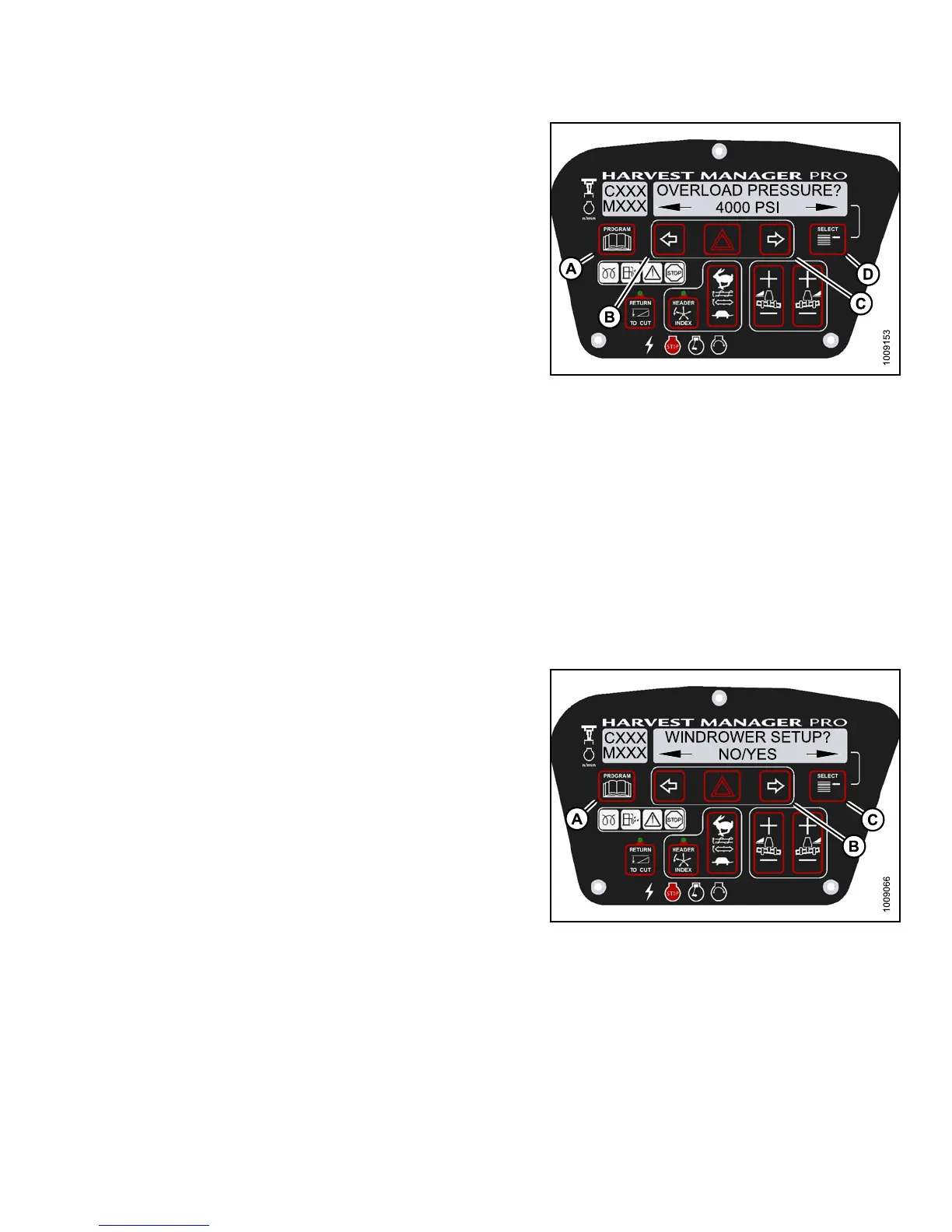

Figure 3.10
8: M155 Hydraulic
Overload Pr
essure
Setting th
e Header Index Mode
Header Index feature is not applicable to rotary headers.
For more information on the Header Index feature, refer to 4.6.6 Reel Speed, page 282 and 4.6.7 Draper Speed,
page 286.
NOTE:
The header MUST be attached to the windrower to perform this procedure. The cab display m odule (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 213.
1. Turn ig
nition key to RUN, or start the en gine.
2. Press P
ROGRAM (A) and SELECT (C) on cab display
module
(CDM) to enter Programming Mode.
•WINDRO
WER SETUP? is displayed on the
upper
line.
•NO/YE
S is displayed on the lower line.
3. Press
right (B) arrow to select YES. Press SELECT (C).
•SETKN
IFE SPEED? is displayed on the upper line.
Figure 3.109: M155 CDM Programming Buttons
147649 107 Revision A
