OPERATOR’S STATION
3.12 Emergency Exit
The emergency exit is located behind the op era tor console.
An emergency exit sign (A) is located above the window.

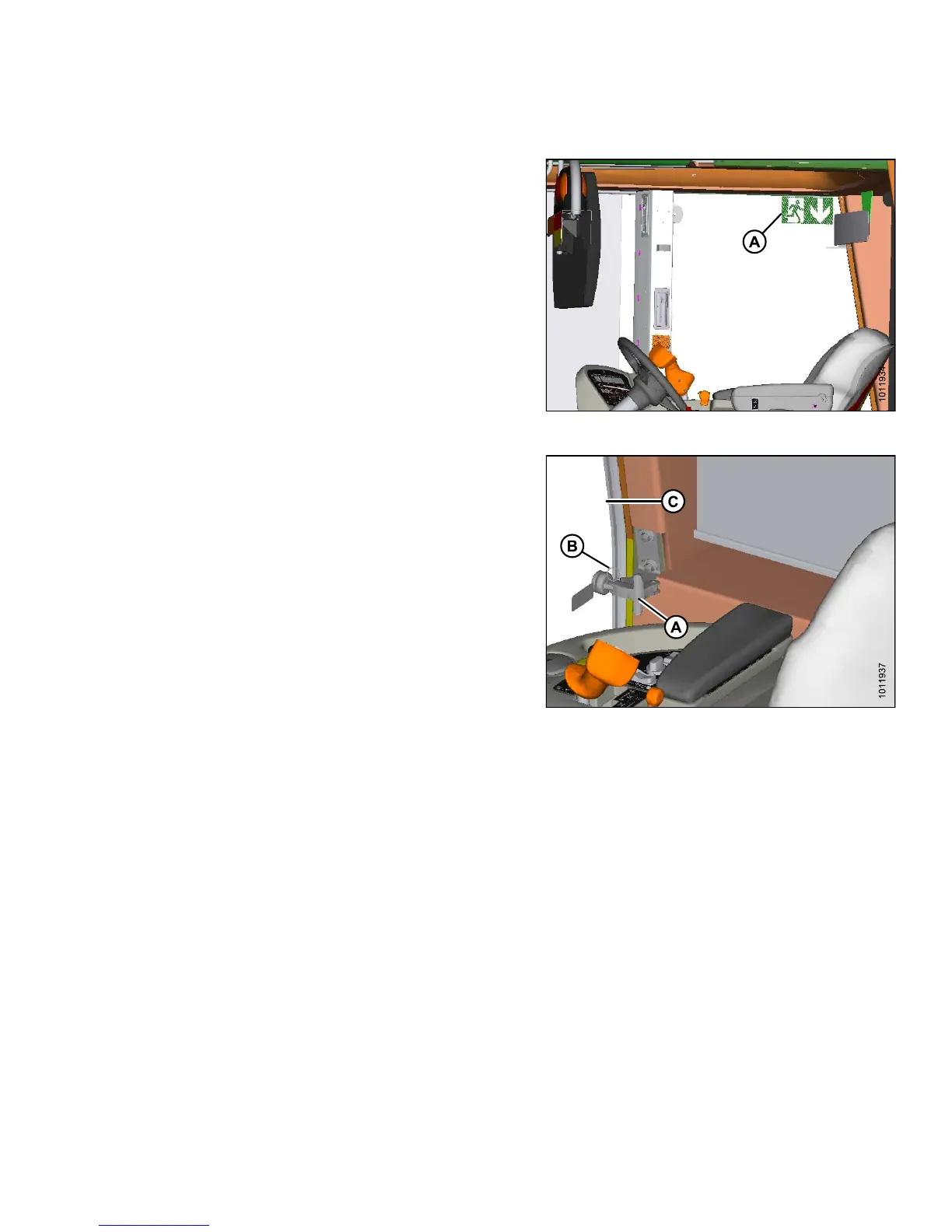

Figure 3.36: Emergency Exit Sign
To open the emergency exit window, do the following:
1. Release the window latch (A).
2. Remove the latch pin (B).
3. Push window open (C).
Figure
3.37: Emergency Exit Window
147649 59 Revision A
