OPERATION
There are also up to five reel drive hoses on the right
cab-forward side.
If necess ary, o btain the following kit from your
MacDon Dealer.
• Base Kit MD #B557 7 (Installation instruction is supplied
with the kit.)

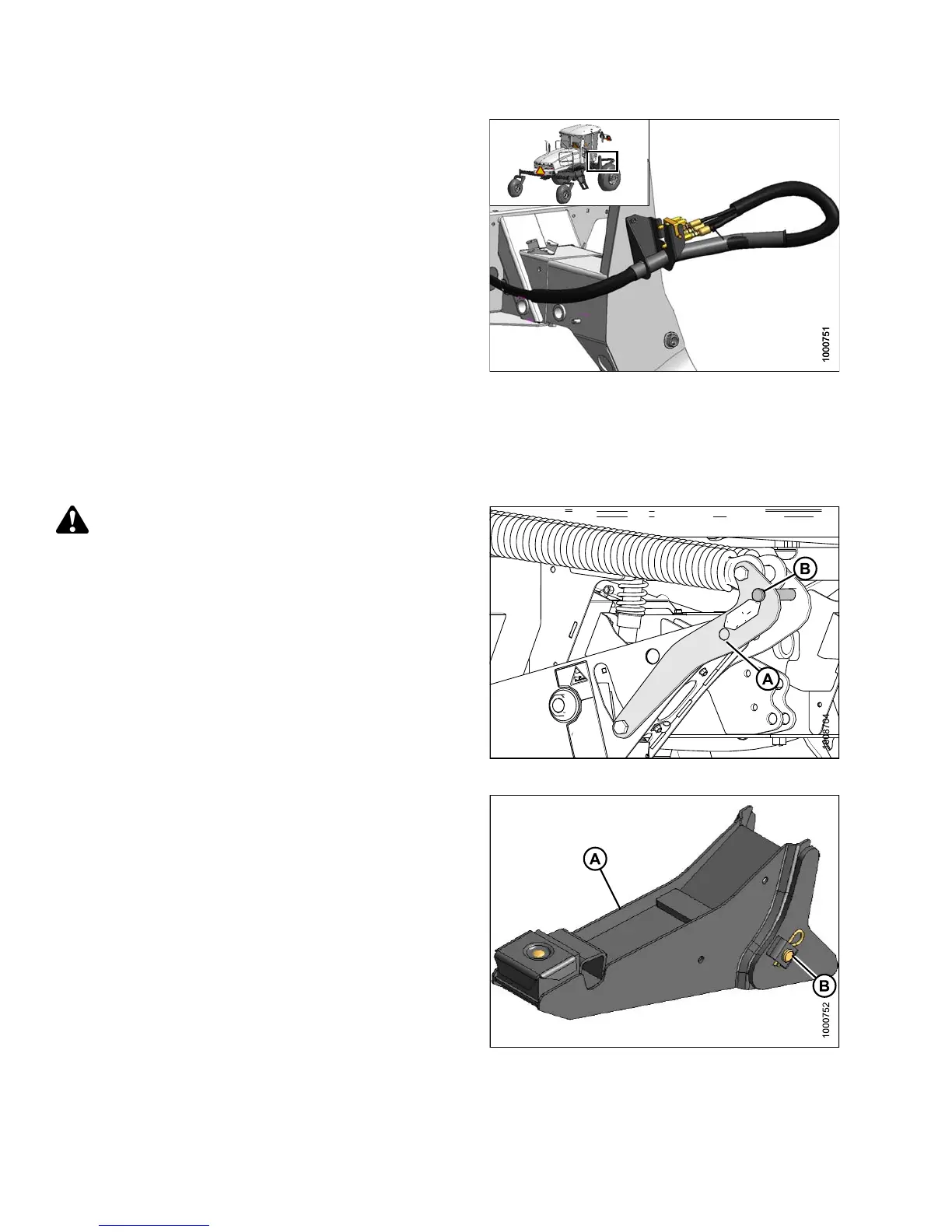

Figure 4.279: Draper Header Reel Hydraulics
4.6.2 Attach ing Header Boots
Header boo
ts are required to attach a D-Series draper header to the windrower. Attach header boots (supplied
with heade
r) to windrower lift linkage if not already installed.
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight
box attached to the windrower, ensure the fl oat
engagement pin is installed in storage position (B)
and NOT in engaged position (A).
Figur
e 4.280: Header Float Linkage
1. Remove pin (B) from bo ot (A).
Fig
ure 4.281: Header Boot
147649 280 Revision A
