OPERATOR’S STATION
3.14 Radio
A radio is available as optional equipment from your Dealer.
3.14.1 AM/FM Radio
A s pace (B) is provided in the cab headliner to
accommodate the installation of an AM/FM radio that is
available as optional equipment from your Dealer.
Two pre-wired speakers (A) have been factory-installed in
the headliner.
For radio installation procedures, refer to MD #169885
M155 and M205 Self-Propelled Windrower Unloading and
Assembly Instructions (North America) or MD #169886
M-Series Self-Propelled Windrower Unloading and
Assembly Instructions (Container Shipments).
Operating instructions are supplied with the radio.

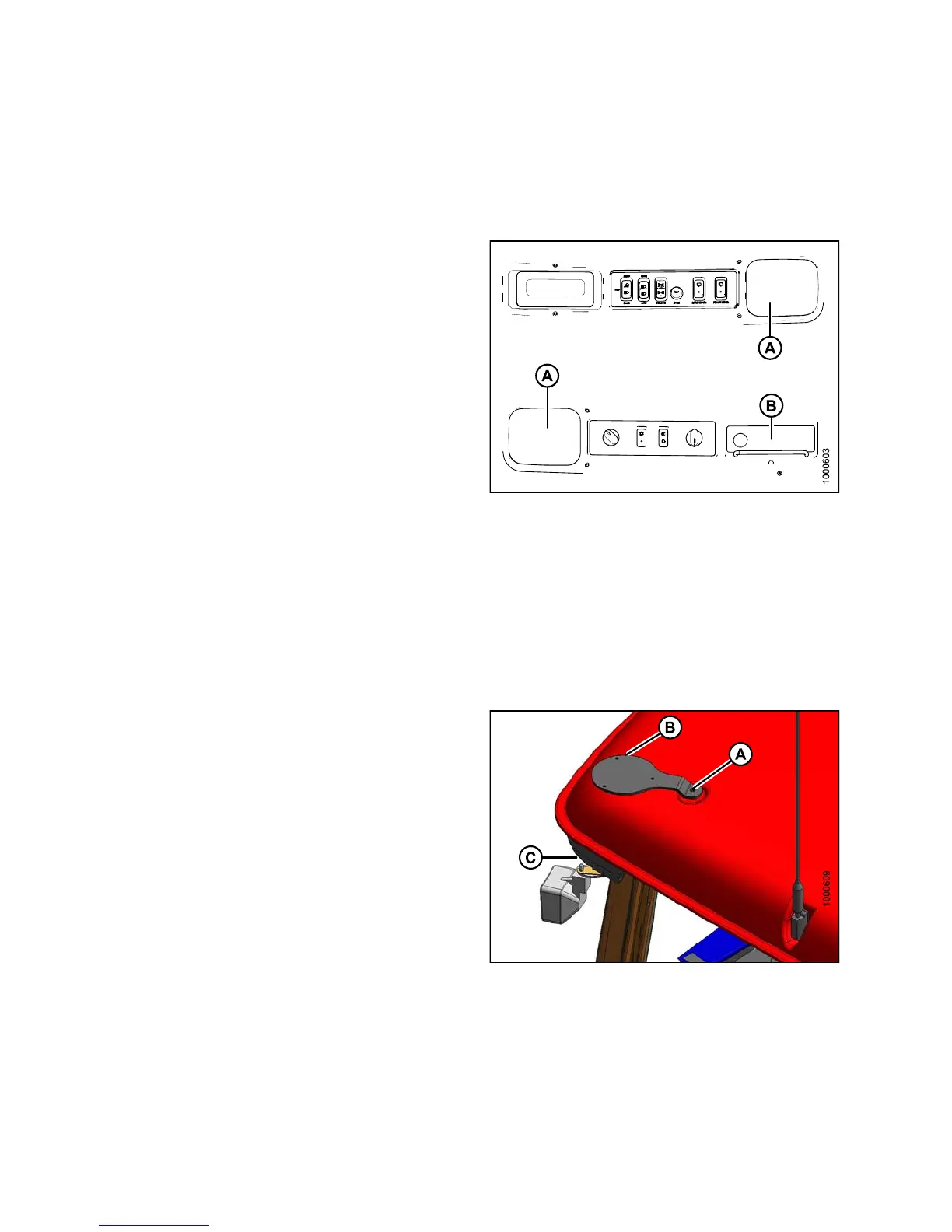

Figure 3.4
3: Speakers in Roof Liner
A - Speakers
B - Radio Mounting L ocation
3.14.2 Antenna Mounting
An optional base for a m agnetic roof-mounted antenna is available from your Dealer.
IMPORTANT:
Antenna base can only be installed on the left cab-forward and right rear cab roof bolts.
Order antenna mount (MD #160288 [B]) or refer to
illustration for part dimens io ns to make an improvised
version. A knockout (C) for the antenna lead is provided
on the cab post.
1. Remove ex istin g bolt (A).
2. Install anten n a mo unt (B) and sec ure with b olt (A).
Figure 3.44: Antenna Mount
