MAINTENANCE AND SERVICING
8. Close cover (B) and secure with tab (A).
9. Return platform to operating position. Ensure
lock engages.
Figure 5.

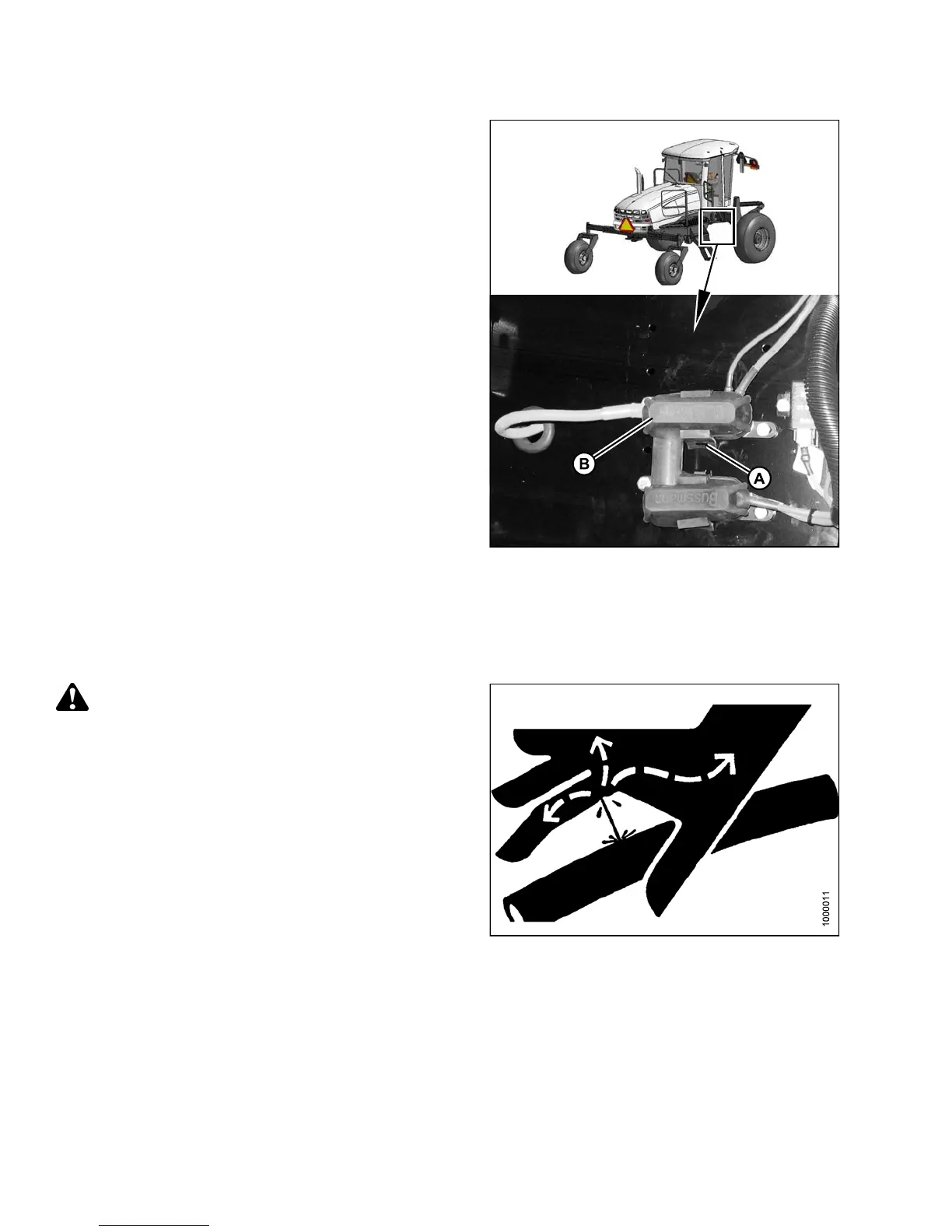

181: 125A Main Fuses
5.5.9 Hy
draulic System
The M155 windrower hydraulic system provides oil pressure for the windrower drive system, the header lift,
and header drive systems.
WARNING
• Avoid high pressure fluids. Escaping fluid can
penetrate the skin causing serious injury. Relieve
pressure before disconnecting hydraulic lines.
• Tighten all connections before applying pressure.
Keep hands and body away from pin-holes and
nozzles which eject fluids under high pressure.
Figu
re 5.182: Hydraulic Pressure Hazard
