MAINTENANCE AND S ERVICING
Inspecting and Replacing 125A Main Fuses
The 125A main fuse holders are located on the frame under the right cab-forward side platform beside the battery.
Access the 1 25A main fuses as follows:
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator ’s seat for any reason.
1. Stop engine and remove key.
2. Move right (cab-forward) side platform rearward.
3. To check condition of fuse, pull tab (A) and open
cover (B).

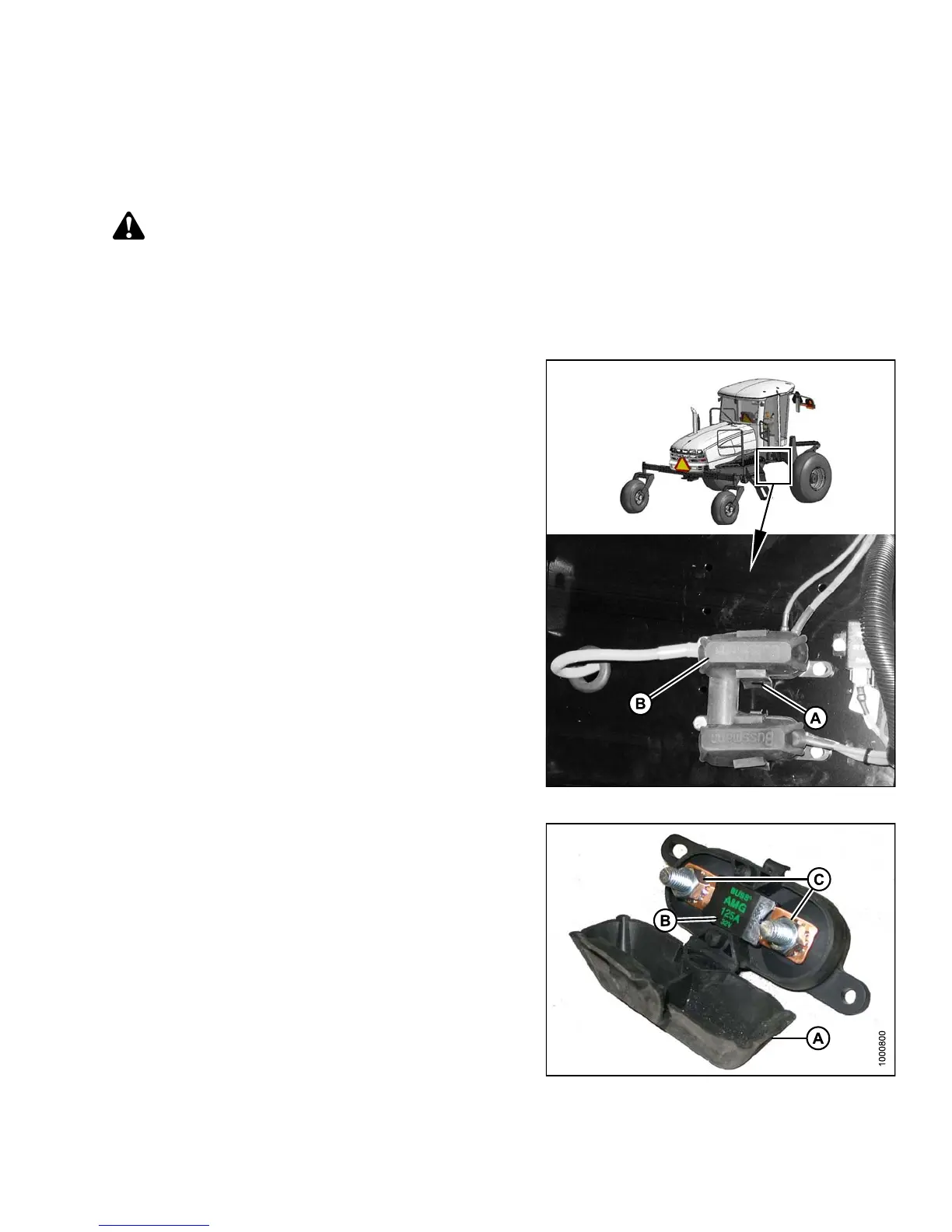

Figure 5.179: 125A Main Fuses
4. Visually examine fuse (B) for indications of melting.
5. Remove fuse (B), remove two nuts (C) and pull fuse
free from holder (existing wiring may need to be pulled
off the stud first).
6. Install new fuse on studs and any existing wiring that
was removed.
7. Secure with nuts (C).
Figure 5.180: 125A Main Fuse
147649 399 Revision A
