OPERATION
3. Stop engine and remove key from ignition.

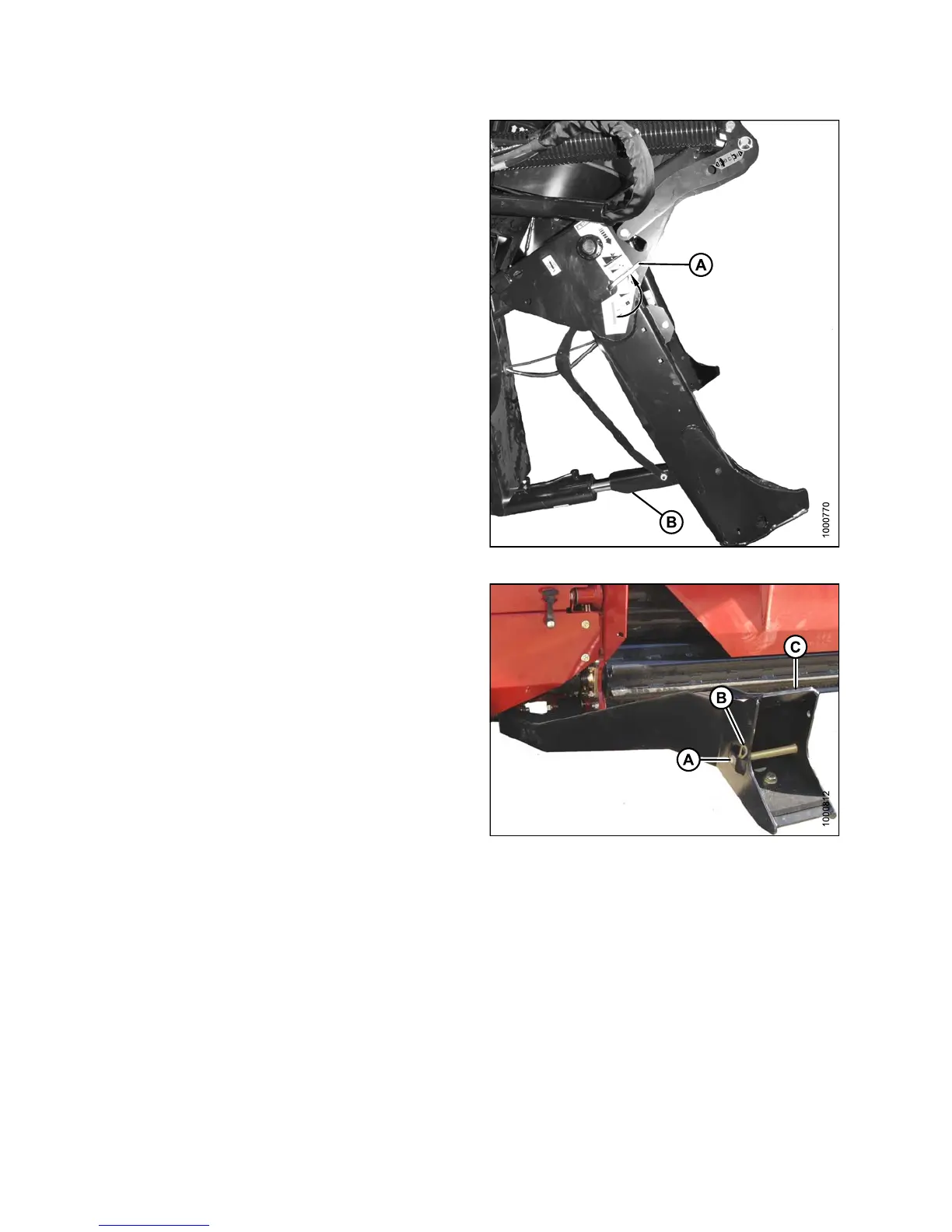

4. Pull lever (A) and rotate toward header to lower safety
prop (B) onto cylinder. Repeat for opposite cylinder.
Figure 4.
269: Safety Prop
5. Remove hairpin (B) from clevis pin (A) and remove pin
from left and right header boots (C) on header.
Figur
e 4.270: Header Boots
147649 276 Revision A
