OPERATOR’S STATION
3. Press SELECT (B) until DIAGNOSTIC MODE? is
displayed in upper line.
• NO/YES is displayed on the lower line.
4. Press right (A) arrow to select Yes. Press SELECT (B).

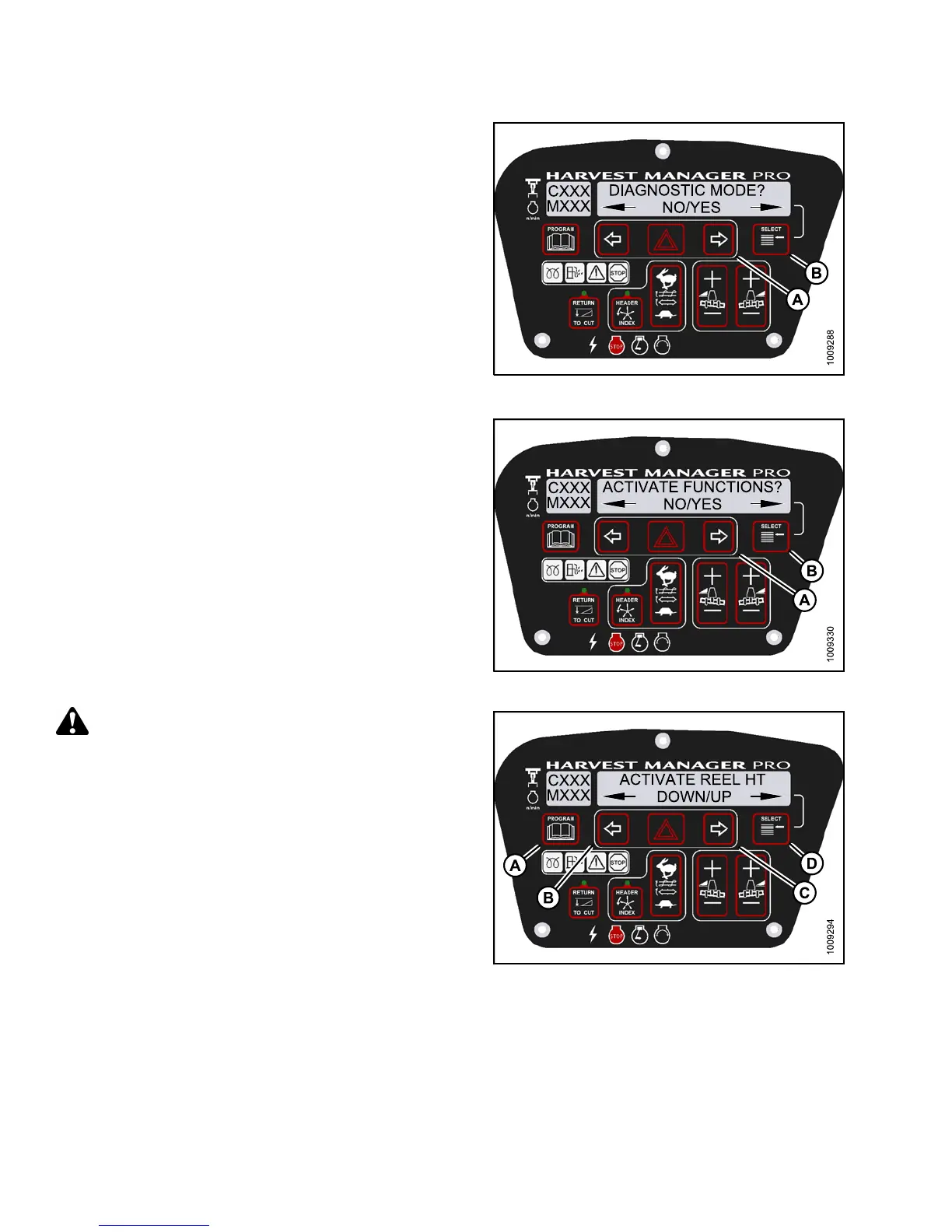

Figure 3.17
7: M155 Diagnostic Functions
5. Press S ELECT (D) until ACTIVATE FUNCTIONS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
6. Press right (C) arrow to select YES. Press
SELECT (D).
Figure 3.178: M 155 Functions
CAUTION
Check to be sure a ll bystanders have cleared the area.
7. Press SELECT (D) until ACTIVATE REEL H T is
displayed on the upper line.
• DOWN/UP is displayed on the low er line.
8. Press an d ho ld left (B) arrow to lower reel. Press and
hold rig ht (C) arrow to raise reel.
Verify reel is functioning properly.
9. Press PROGRAM (A) to exit Programming
Mode or press SELECT (D) to proceed to next
ACTIVATE FUNCTION.
Figure 3.179: M155 Reel Height
