MAINTENANCE AND S ERVICING
Replacing Circuit Breakers and Relays
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator ’s seat for any reason.
Replace breakers and relays as follows:
1. Stop engine and remove key.
2. Move right cab-forward side platform rearward (cab-forward).
3. To replace circuit breaker (A), pull breaker ou t of
receptacle and ins tall new circuit breaker.
4. To replace relay (B), pull relay out of receptacle and
install new relay.
5. Reinstall cover and secure with wing nut.

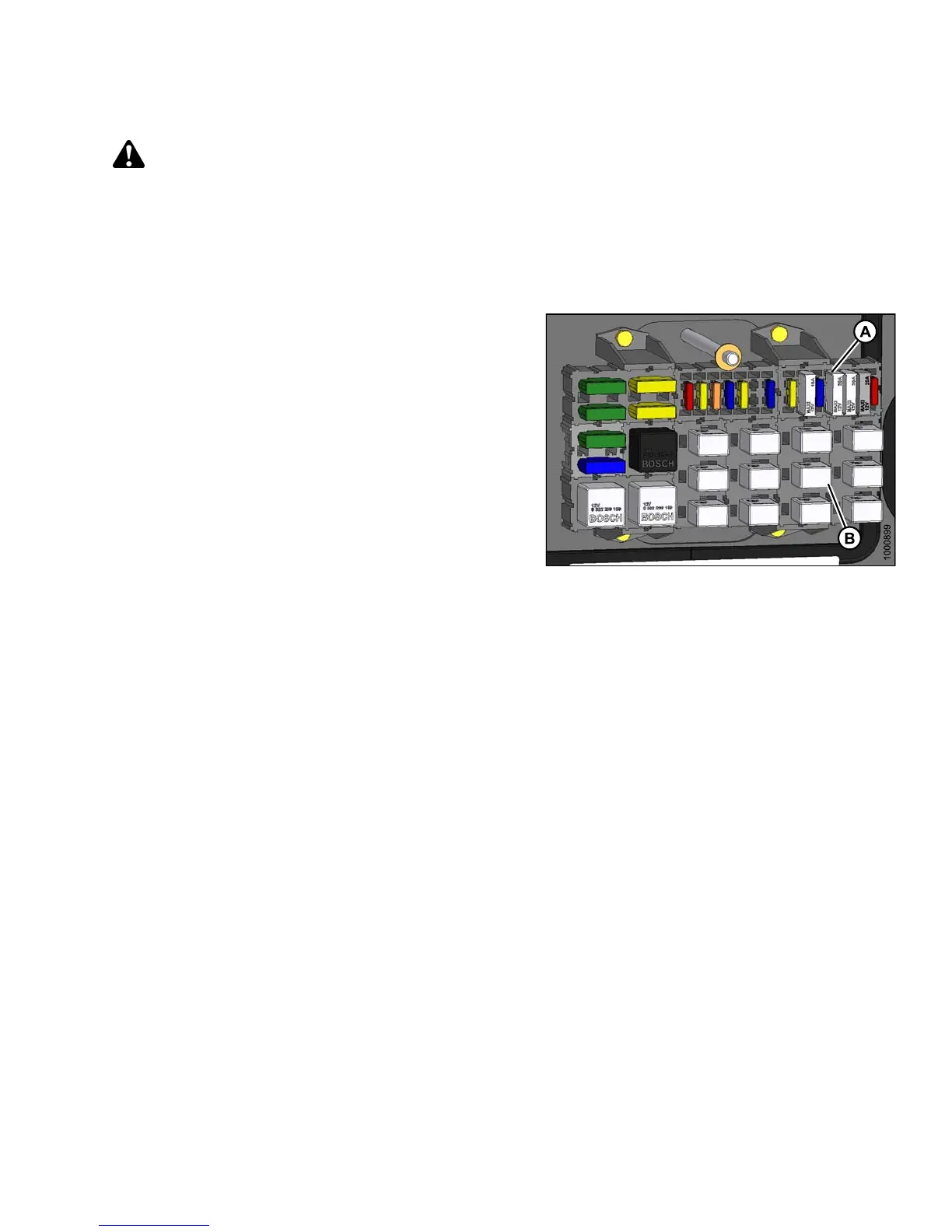

Figure 5.177: Relays and Breakers
147649 397 Revision A
