MAINTENANCE AND S ERVICING
1. Shut down engine and remove key. Turn lights OFF.
2. Remove two screws (A) and remove light bezel (B).
3. Remove light from receptacle.

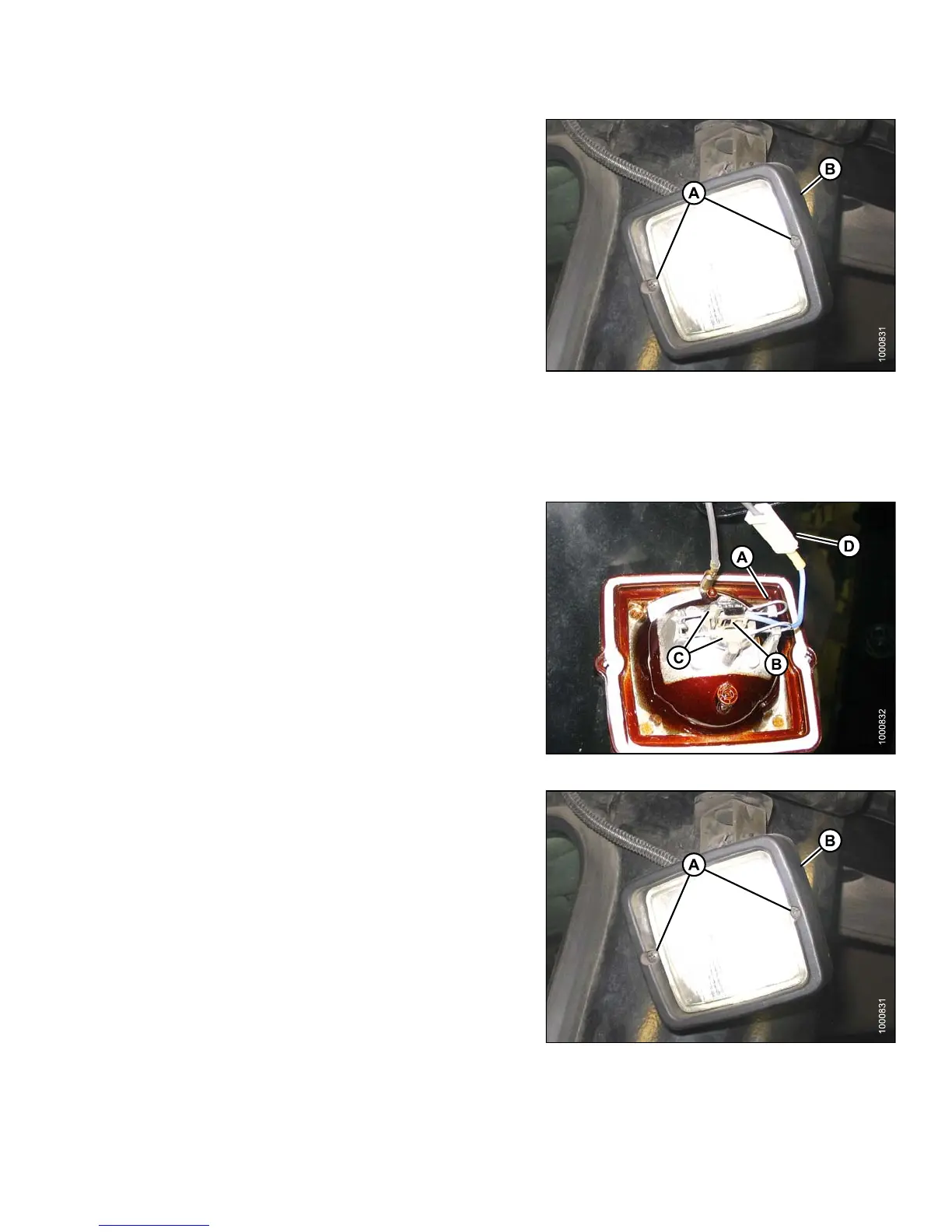

Figure 5.156: Rear Flood Light Assembly
IMPORTAN T:
Do NOT touch the glass of the halogen bulb as the
oils or other chemicals from your skin will cause the
bulb to fail prematurely.
4. Pinch the wire retainer (A) and lift away from hooks.
5. Remove bulb (B) from body and pull wire from
connector (D).
6. Match slots on new bulb (B) with lugs (C) in optical unit
and insert bulb into unit.
7. Secu re bulb with wire reta iner (A) .
8. Push wire into connector (D).
Figure 5.157: Rear Flood Light Assembly
9. Position light into light receptacle, ensuring top is up.
10. Secure with bezel (B) and screws (A).
Figure 5.158: Rear Flood Light Assembly
147649 387 Revision A
