OPERATOR’S STATION
CAUTION
Check to be sure all bystanders have cleared the area.
6. Press and hold the HEADER TILT EXTEND (B) button
on the ground speed lever (GSL).
• CALIBRATING TILT is displayed on the upper line.
• EXTEND TILT HOLD is displayed on the lower line.
NOTE:
ThewordHOLDwillflash during calibration.
HEADER TILT DONE will display on the lower
line once calibratio n is complete.
7. Release the HEADER TILT EXTEND (B) button.
• HEADER TILT SENSOR CAL is displayed on
upper line.
• PRESS RETRACT TILT is displayed on the
lower lin e.

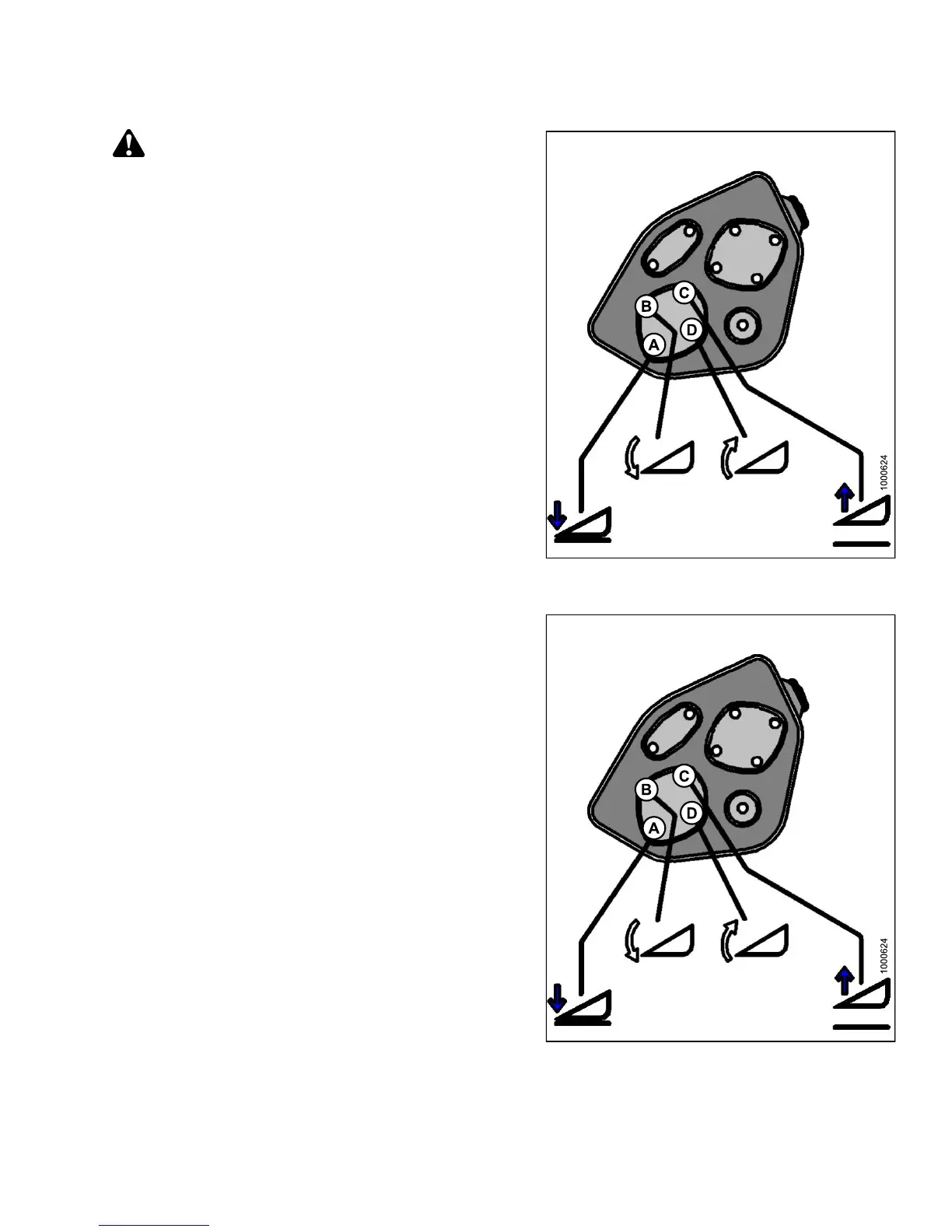

Figure 3.91: Header Tilt Controls on Ground
Speed Lever
8. Press and hold HE ADER TILT RETRAC T (D) button
on GSL.
• CALIBRATING TILT is displayed on the upper line.
• RETRACT TILT HOLD is displayed on the
lower lin e.
NOTE:
ThewordHOLDwillflash during calibration.
HEADER TILT COMPLETE will display on the
lower line o n c e calibration is complete.
9. Release H EADER TILT RETRACT (D) button.
• TO CALIBRATE SELEC T is displayed on the
upper line.
• HEADER TILT is displayed on the lowe r line.
10. Press right arrow to select next header sensor
calibration or S TOP & EXIT. Press SELECT.
Refer to Calibrating the Header Height Sensor, page
95 or Calibrating the Header Float Sensors, page 100.
11. Press PROGRAM to exit Programming Mode.
Fi
gure 3 .92: Header Tilt Controls on Ground
Sp
eed Lever
