OPERATOR’S STATION
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrow to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.

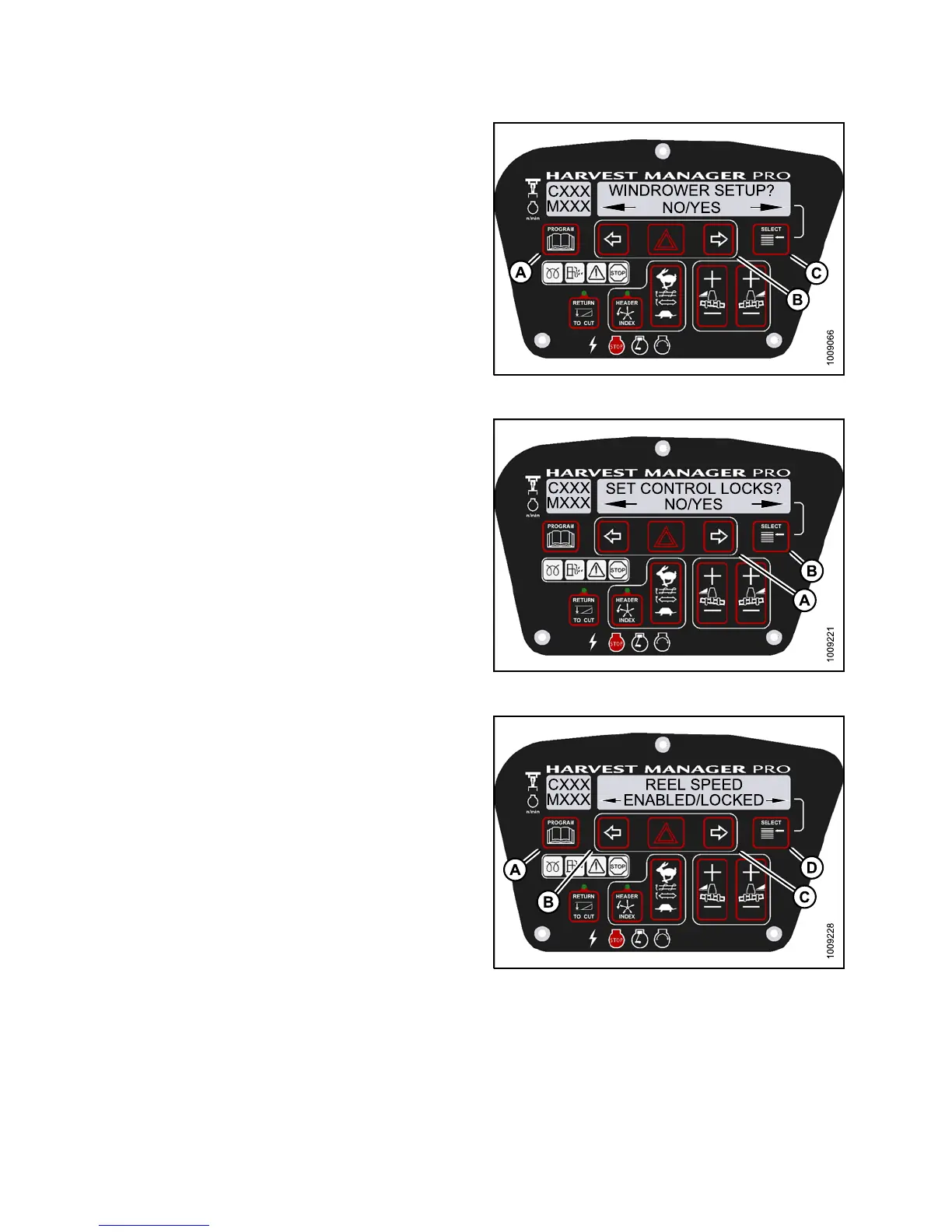

Figure 3.146: M155 CDM Programming Buttons
4. Press SELECT (B) until SET CONTROL LOCKS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
5. Press right (A) arrow to select YES. Press SELECT (B).
Figure 3
.147: M155 Control Locks
6. Press SELECT (D) until REEL SPEED is displayed on
the upper line.
• ENABLED/L O C KED is displayed on the lower line.
7. Press left (B) arrow to enable REEL SPEED
control switch.
Press right (C) arrow to lock REEL SPEED
control switch.
8. Press PROGRAM (A) to exit Programming Mode, or
press SELECT (D ) to proceed to next WINDROWER
SETUP action.
Figure 3.148: M 155 Reel Speed Control Lock
