OPERATOR’S STATION
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrow to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.

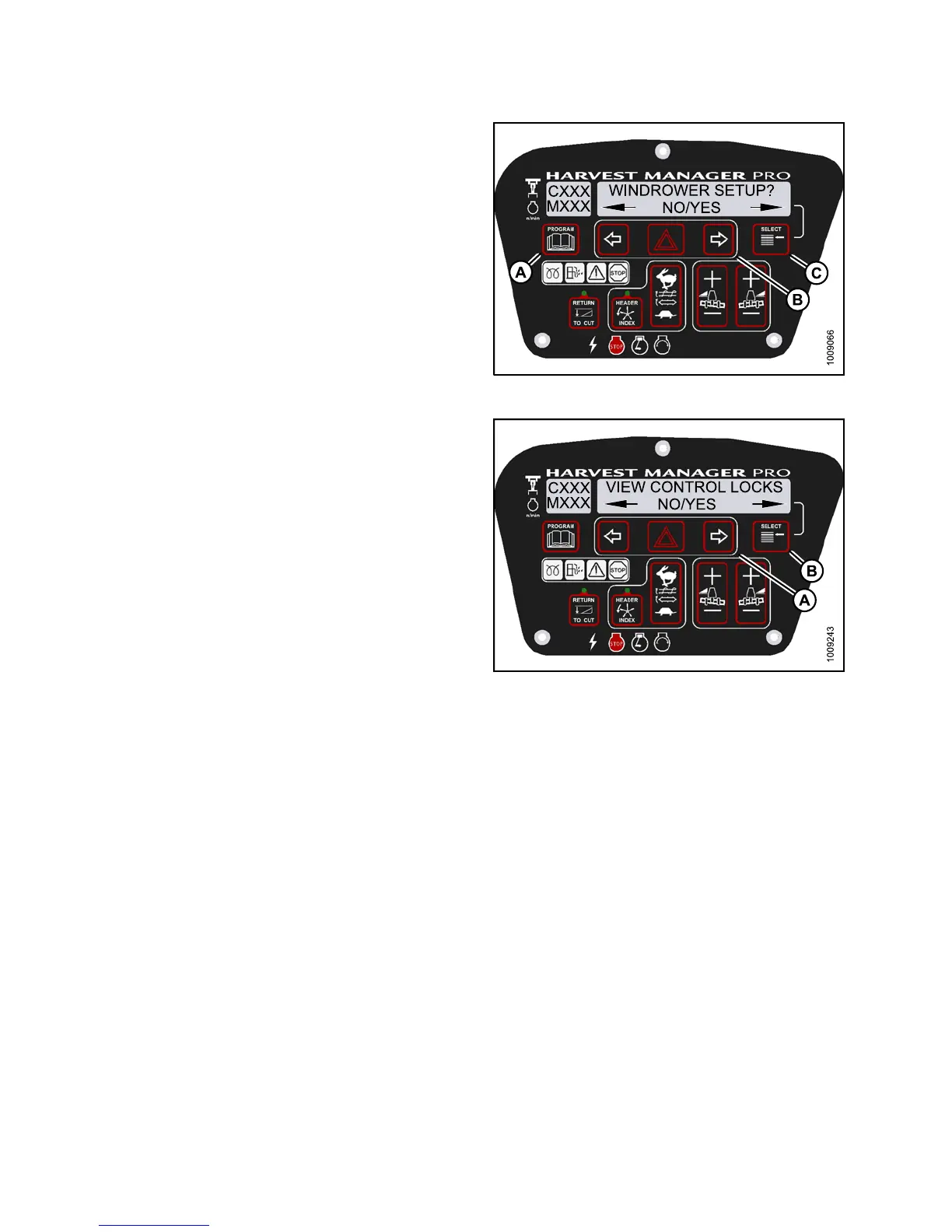

Figure 3.155: M155 CDM Programming Buttons
4. Press S ELE CT (B) until VIEW CONTROL LOC KS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
5. Press right (A) arrow to select YES. Press SELECT (B).
HEADER TILT is displa ye d on t he upper line.
• The control switch status is displayed on the lower
line. The hours displayed indicate when a switch
was enabled or lock ed.
Figure 3
.156: M155 Control Locks
