MacDon M155 - Page 146

OPERATOR’S STATION
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode. Press
SELECT (C).
• WINDROWER SETUP? is displayed on the
upper line.
3. Press SELECT (C) until DIAGNOSTIC MODE? is
displayed in upper line.
• NO/YES is displayed on the lower line.

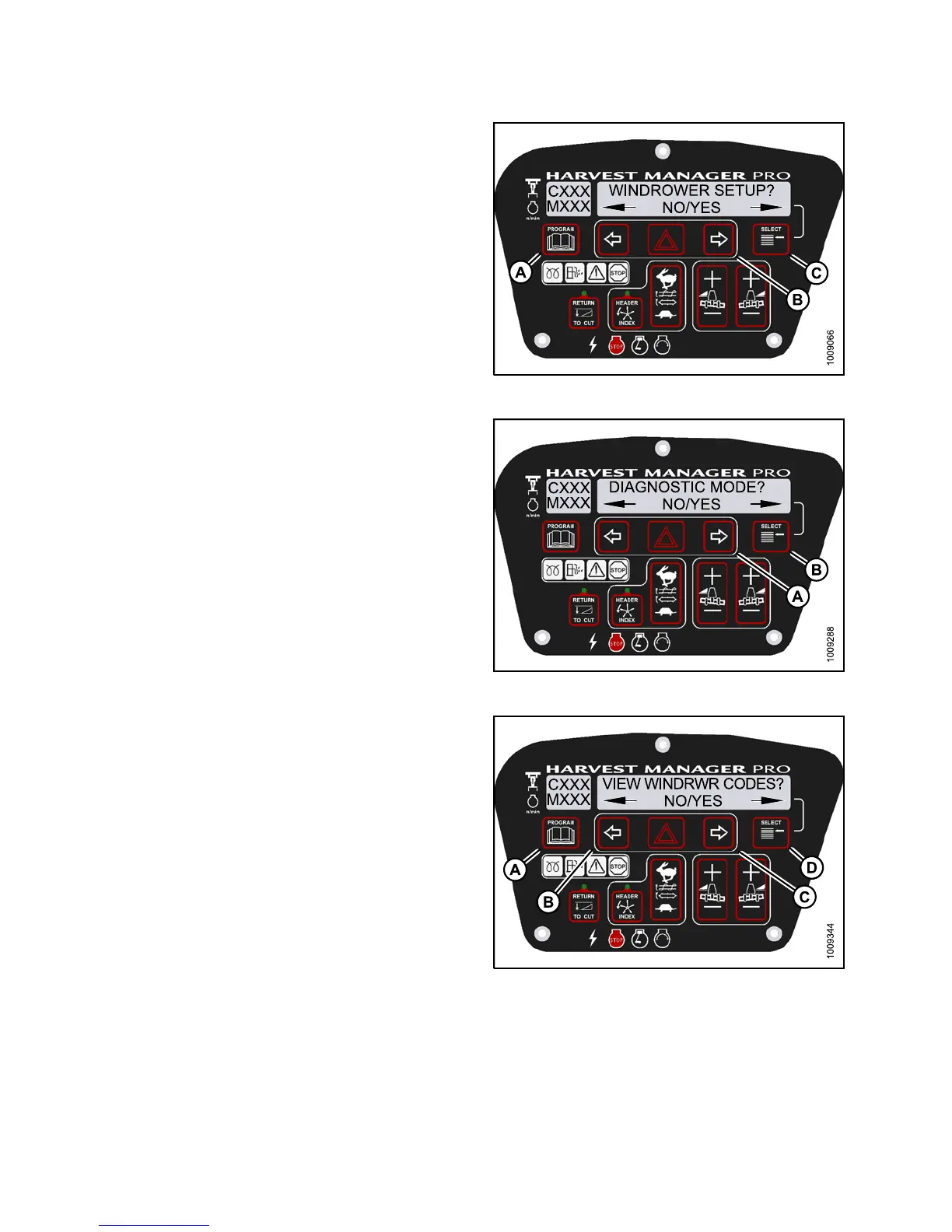

Figure 3.158: M155 CDM Programming Buttons
4. Press right (A) arrow to select Yes. Press SELECT (B).
5. VIEW ERROR CODES? is displayed on the upper line.
• NO/YES is displayed on the lower line.
6. Press right (A) arrow to select YES. Press SELECT (B).
• VIEW WINDRWR COD ES? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
Figure 3
.159: M155 Diagnostic Functions
7. Press right (C) arrow to select YES. Press
SELECT (D).
• The most recent error code will be displayed.
• Refer to 8.5 Cab Display M odule (CDM) Error
Codes, page 481.
8. Press and left (B) or right (C) arrow to cycle through
the last 10 recorded windrower error codes until EXIT
WINDROWER CODES is displayed.
9. Press right (C) arrow to select YES. Press
SELECT (D).
• VIEW ENGINE CODES is displayed on the
upper line.
• NO/YES is displayed on the lower line.
Figure 3.160: M155 Windrower Codes
147649 130 Revision A
