OPERATION

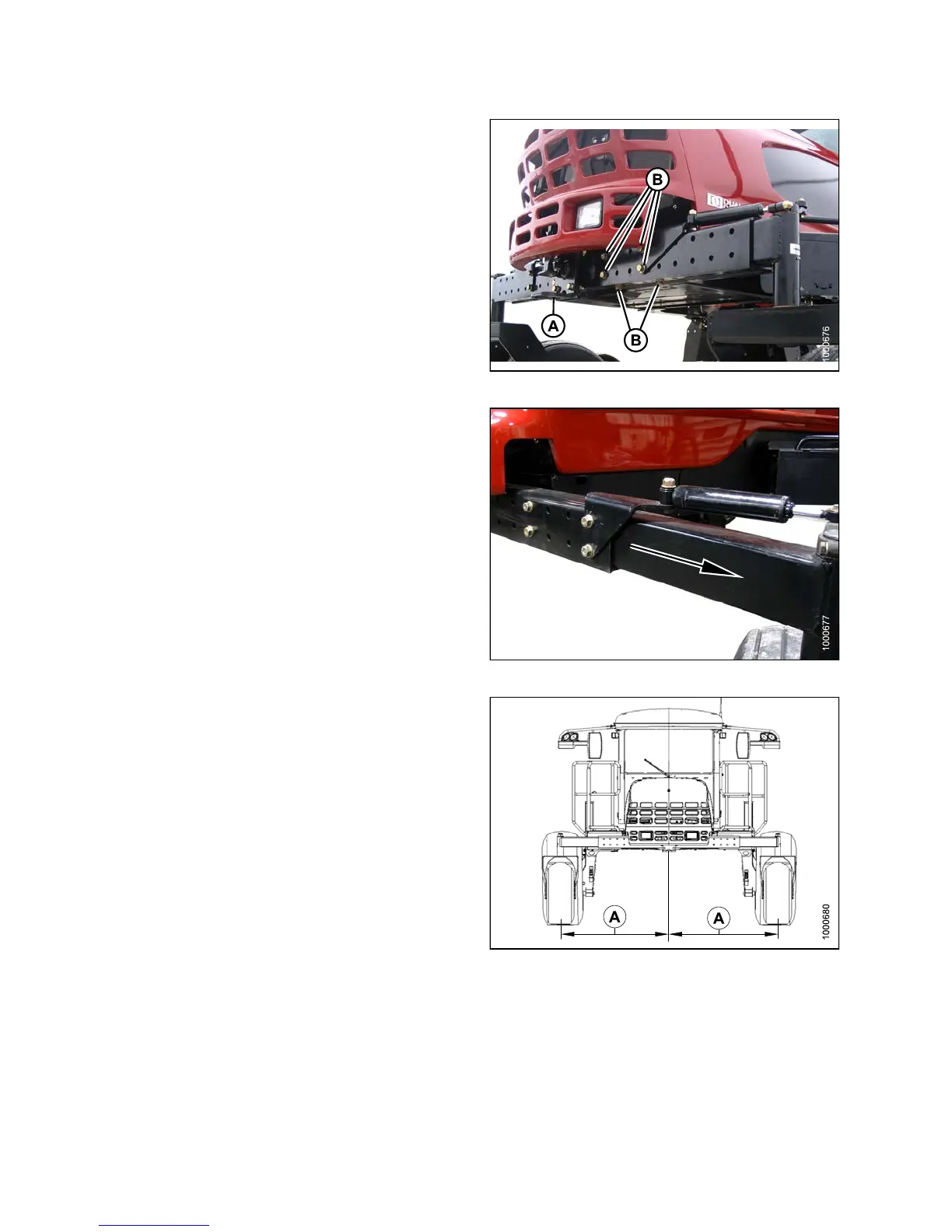

Adjust th e caster tread width as follows:
1. Raise rear of win drower slightly s o that most of the
weight is off the casters, using a jack or other lifting
device under the frame at (A).
NOTE:
Lifting device should have a lifting capacity of at
least 5000 lb (2270 kg).
2. Remove six bolts (B) four on backsid e, two on
underside, and washers from left and right side of
walking bea m.
Figure 4.28: Caster Wheel Extensions
3. Slide extensions inboard or outboard equal amounts
and align holes at desired location.
NOTE:
Use the cas
ter wheels to assist in moving the
extension
s by rotating the caster until the wheel
is paralle
l to the walking beam.
Figure 4.29: Caster Wheel Extensions
IMPORTANT:
Caster wheels must be equidistant from center
of windrower.
Figure 4.30: Adjustable Caster Wheels
147649
1
74
Revision A
