OPERATION

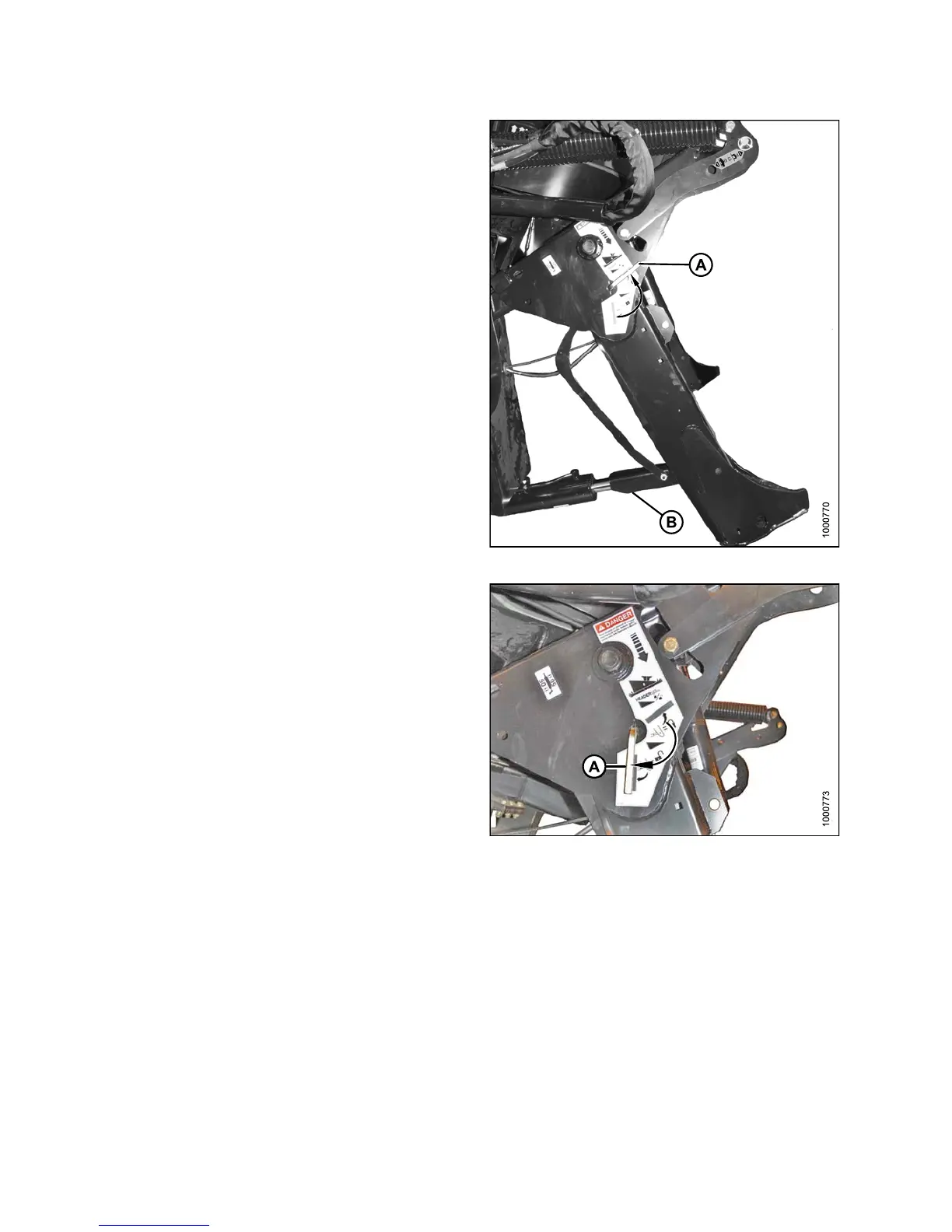

3. Pull lever (A) and rotate toward header to lower safety
prop (B) onto cylinder. Repeat for opposite cylinder.
Figure 4.
75: Safety Prop
4. Disengage safety props by turning lever (A) away from
header to raise safety prop until lever locks into vertical
position. Repeat for opp osite cylinder.
5. Start engine, choose a level area, and lower header to
the ground. Stop engine and remove key.
Figur
e 4.76: Safety Prop
147649 194 Revision A
