OPERATION

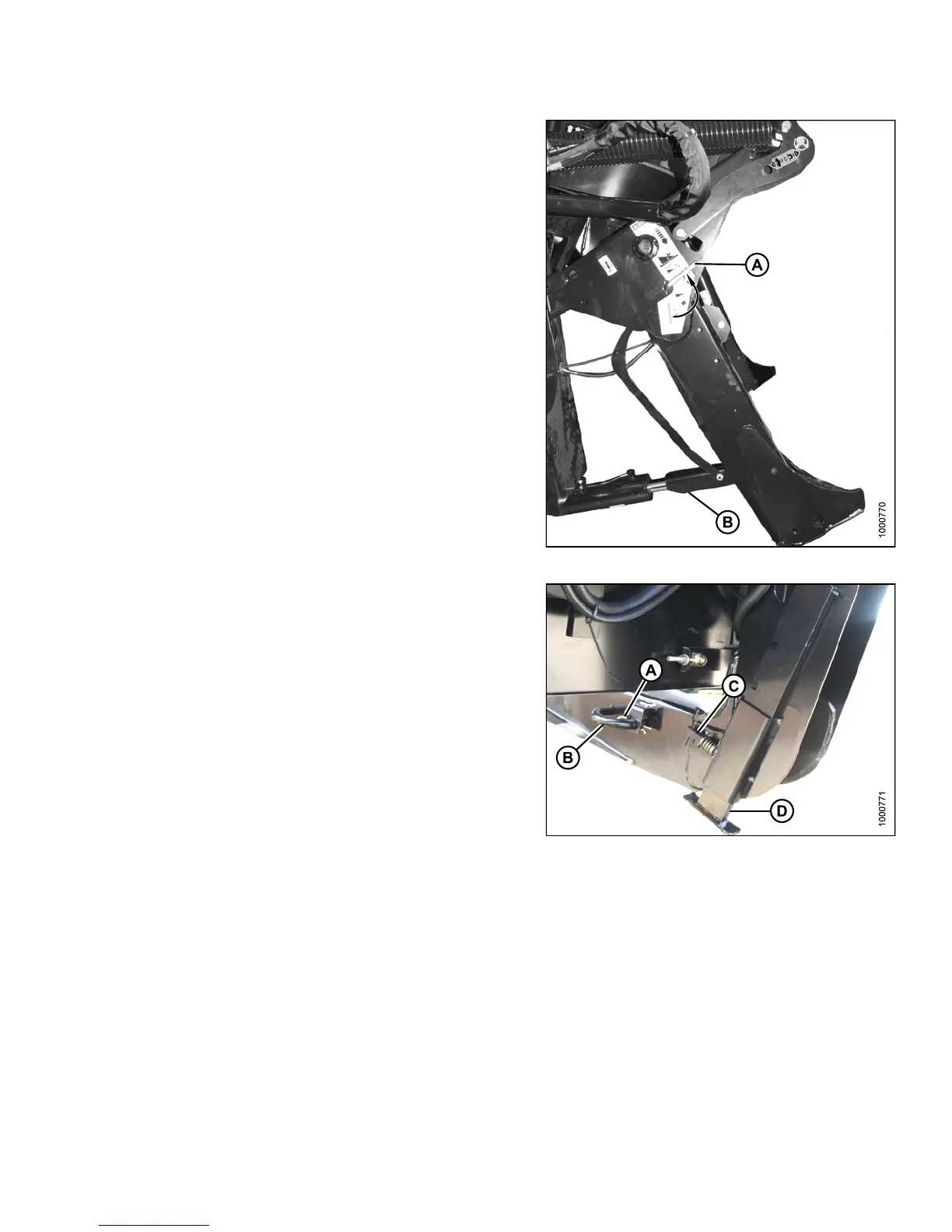

11. Engage safety props on b oth lift cylinders as follows:
a. Stop engine and remove key from ignition.
b. Pull lever (A) and rotate towards the header
to release and lower safety prop (B) onto the
lift cylinder.
c. Repeat for opposite lift cylinder.
Figure 4.
144: Safety Prop
12. Install pin (B) through the header leg (engaging
U-bracket in lift linkage) on both sides and secure with
hairpin (A).
13. Raise header stand (D) to sto rag e position by pulling
spring pin (C) and lifting stand into uppermost position.
Release spr ing pin.
Figur
e 4.145: Header Leg
147649
2
27
Revision A
