OPERATION

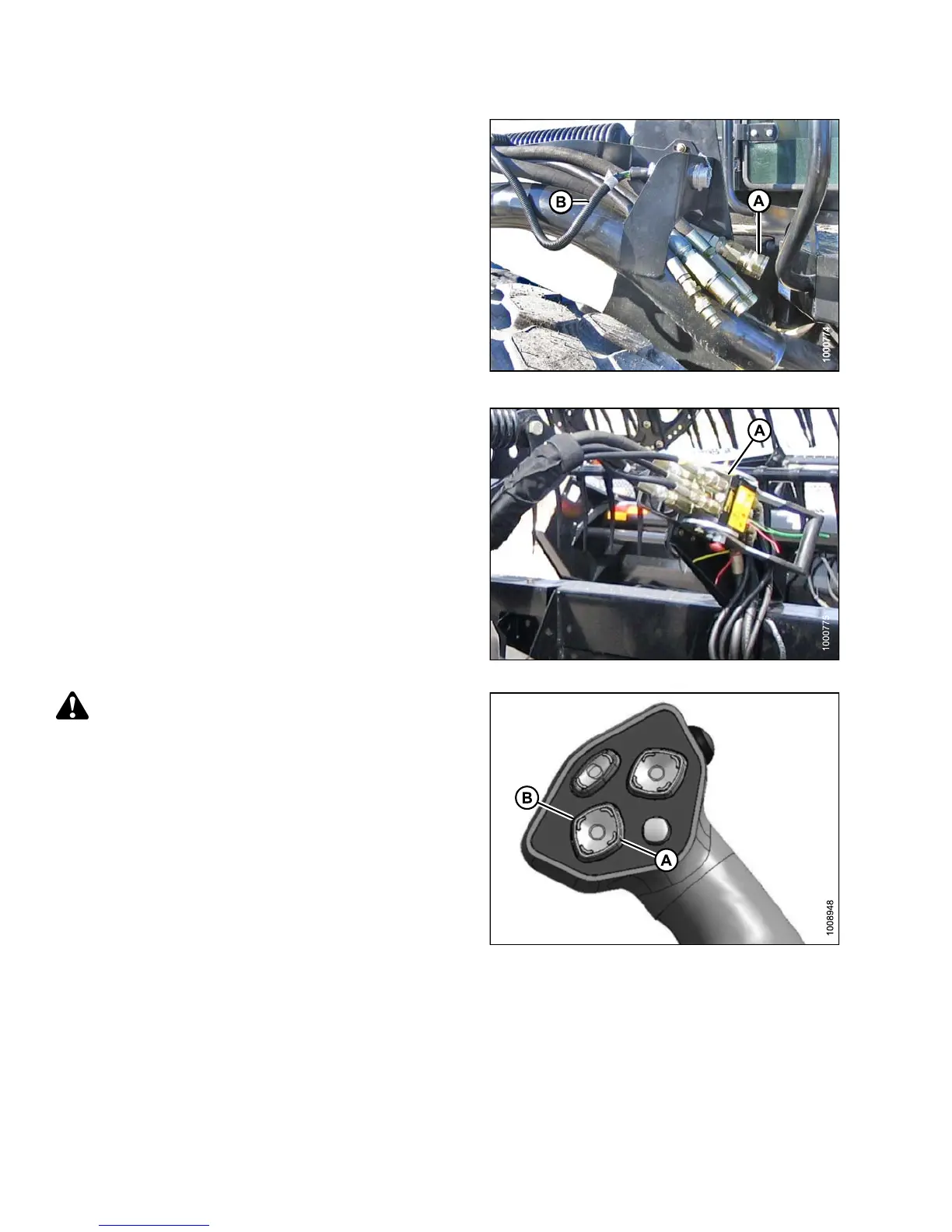

10. Disconnect header drive hydraulics (A) and electrical
harness (B) from header and store in support on
windrower left cab-forward side. Refer to the draper
header operator’s manual for further information.
Figure 4.156: Header Drive Hydraulics
11. Disconnect reel hydraulics (A) from header and
store on bracket at windrower left c ab-forward side.
Refer to the draper header operator’s manual for
further information.
Figure 4.157: Reel Hydraulics
CAUTION
Check to be sure a ll bystanders have cleared the area.
12. Start engine and activate header tilt up (A) and header
tilt down (B) cylinder switches on ground speed
lever (GSL) to release load on center-link cylinder.
Figure 4.158: GSL
147649 232 Revision A
