OPERATION

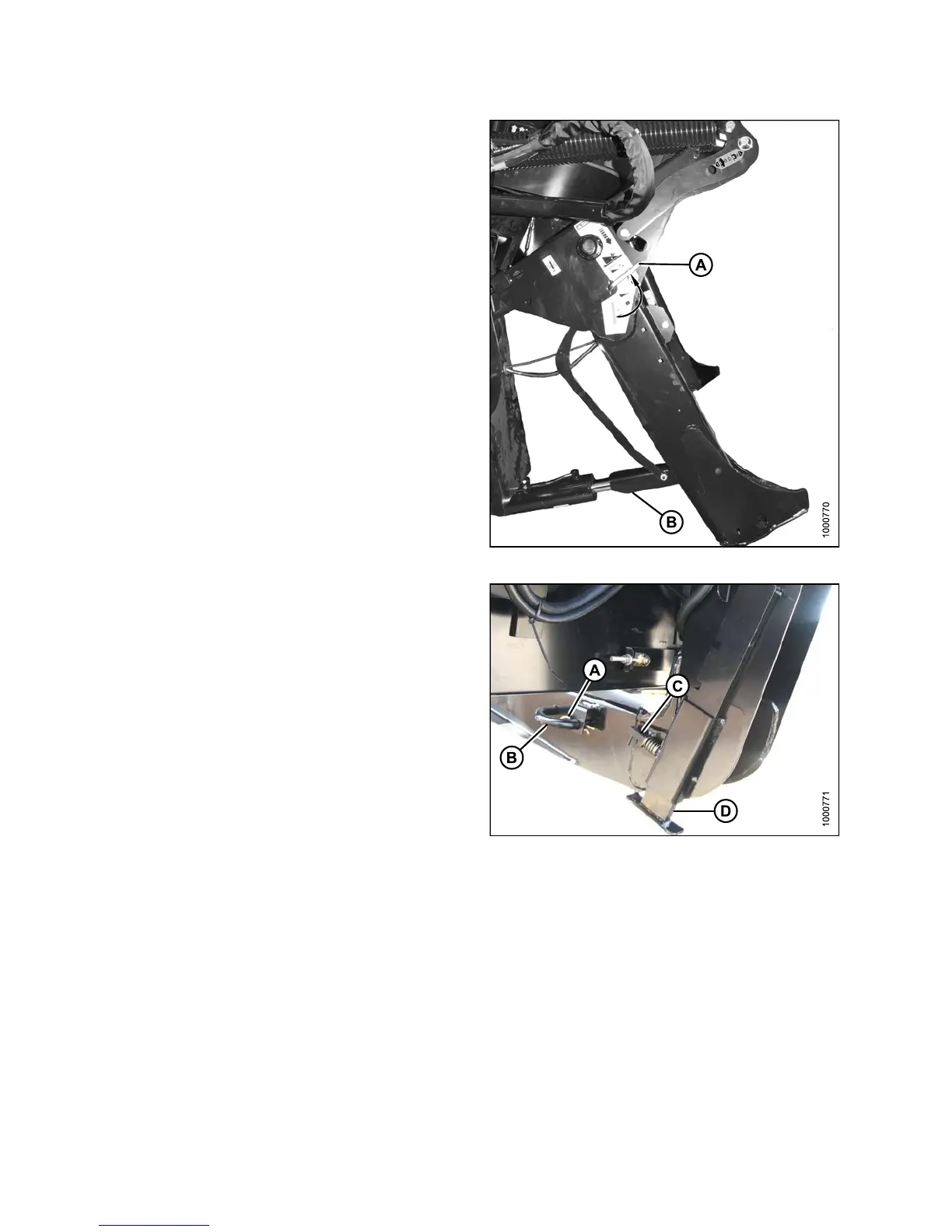

4. To engage the safety props, pull lever (A) and rotate
toward header to lower safety prop (B) onto cylinder.
Repeat for the opposite cylinder.
Figure 4.
162: Safety Prop
5. Remove the clevis pin (B) by removing h airpin (A) from
header leg on both sides.
6. Lower header stand (D) by pu lling spring loaded
pin (C). Release pin to lock stand.
Figur
e 4.163: Header Stand
147649 234 Revision A
