OPERATION

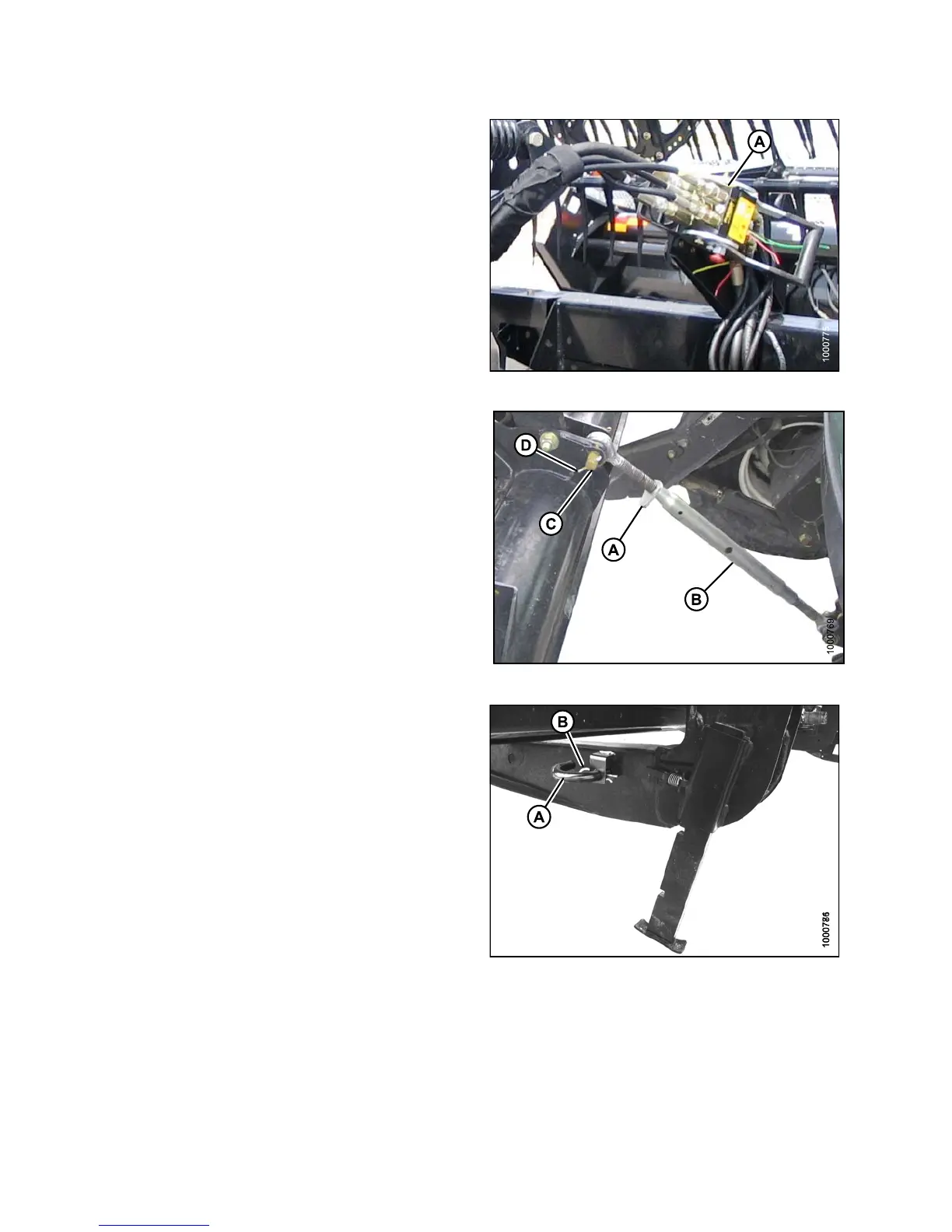

11. Disconnect reel hydraulics (A) from header and
store on bracket at windrower left c ab-forward side.
Refer to the draper header operator’s manual for
further information.
Figure 4.167: Reel Hydraulics
12. Loosen nut (A) and rotate barrel (B) to relieve load
on lin k.
13. Remove cotter pin on clevis pin (D) and remove the pin
(C) to disconnect from windrower. Reinstall clevis pin
(C) in header.
14. Tighten nut (A) against barrel. A slight tap with a
hammer is sufficient.
Figure 4
.168: Mechanical Center-Link
15. Reinstall pin (A) into header leg and secure with a
hairpin ( B).
Figu
re 4.169: Header Leg
147649 236 Revision A
