OPERATION

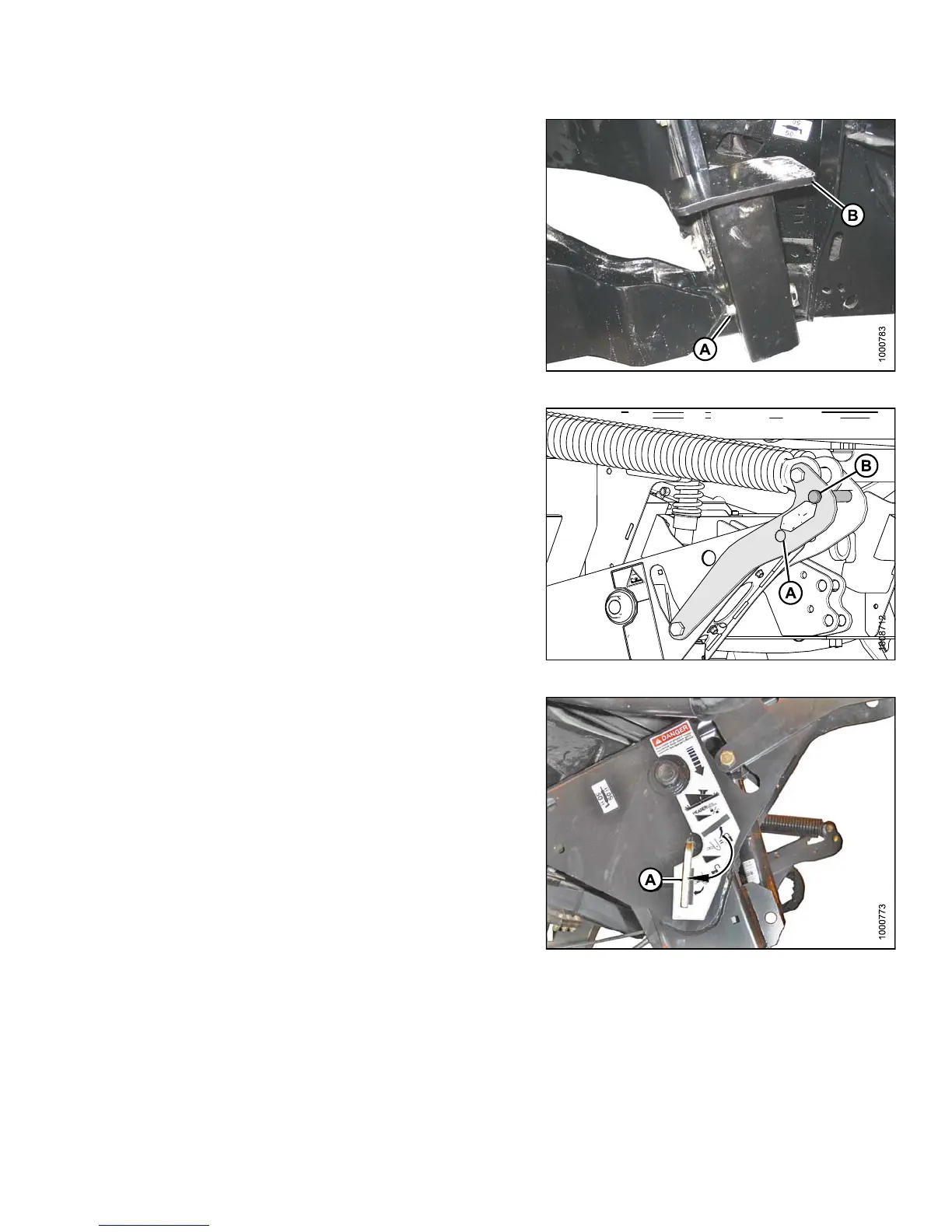

13. Remove lynch pin from c levis pin (A) in stand (B).
14. Hold stand (B) and remove pin (A).
15. Move stand (B) to storage position by inverting and
relocating onto bracket as shown. Reinsert clevis
pin (A) and secure w ith lynch pin.
Figure 4.182: Header Stand
16. Remove clevis pin from storage position (B) in linkage
and insert into hole (A) to engage floa t springs. Secure
with hairpin.
Figure 4.183: Header Float Linkage
17. Disengage safety prop by turning lever (A) downwards
to rele ase and lower s top until lever loc ks into
vertical position.
18. Repeat for opposite safety prop.
Figure 4.184: Safety Prop
147649 243 Revision A
