OPERATION

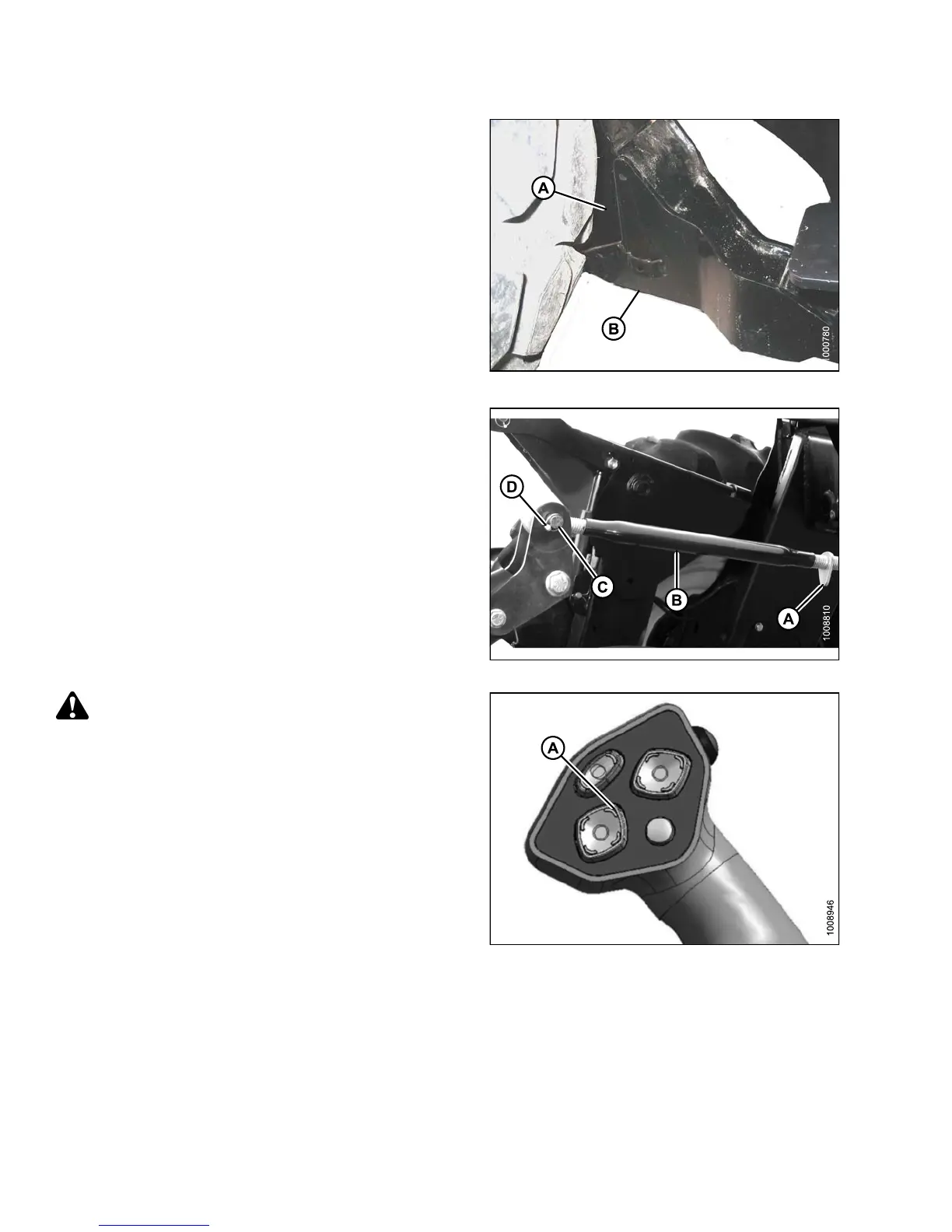

3. Drive the windrower slowly forward until the windrower
feet (A) enter the header boots (B). Continue driving
slowly forward until the feet engage the boots and the
header nudges forward.
Figure 4.190: Header Boot
4. Stop engine and remove key from ignition.
5. Loosen nut (A) and rotate barrel (B) to adjust length
until the link is aligned with the header bracket.
6. Install clevis pin (C) and secure with cotter pin (D).
7. Adjust length of link to achieve proper header angle
by rotating barrel (B). Tighten nut (A) against barrel (a
slight tap with a h a mmer is s ufficient).
Figure 4.191: Mechanical Center-Link
CAUTION
Check to be sure a ll bystanders have cleared the area.
8. Start the engine.
9. Press the header up switch (A) to raise header to
maximum height.
NOTE:
If one end of the header does NOT fully rais e,
rephase the lift cylinders as follows:
a. Press and hold the header up switch until both
cylinders stop moving.
b. Continu e to hold the switch for 3–4 seconds.
Cylinders are now phased.
NOTE:
It may be necessary t o repeat this procedure if
there is a ir in the system.
Figure 4.192: GSL
147649 246 Revision A
