OPERATION

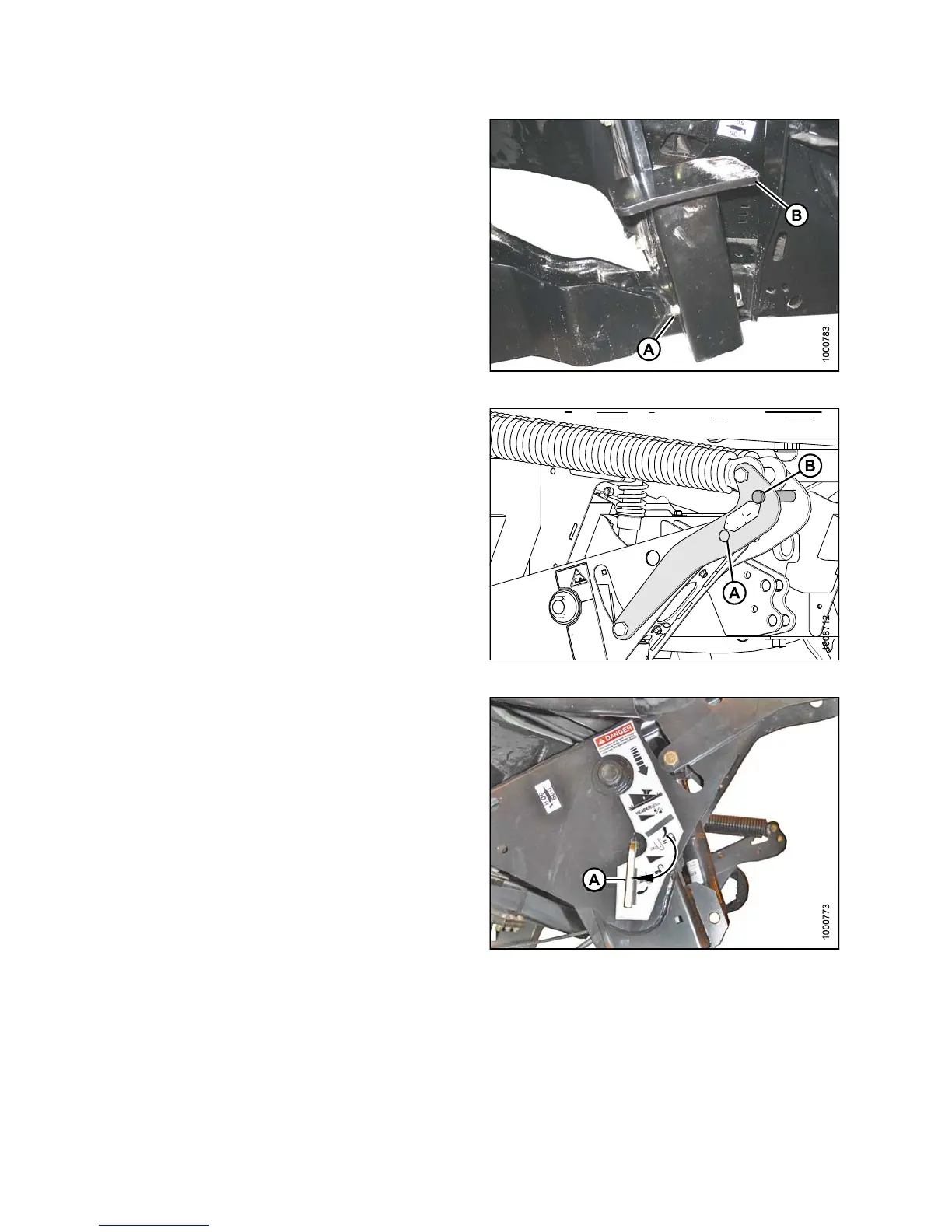

12. Remove lynch pin from clevis pin (A) in stand (B).
13. Hold stand (B) and remove pin (A).
14. Move stand (B) to storage position by inverting and
relocating onto bracket as shown. Reinsert clevis
pin (A) and secure with lynch pin.
Figure 4.195: Header Stand
15. Remove clevis pin fro m storage position (B) in linkage
and insert into hole (A) to engage float springs. Secure
with hairpin.
Figure 4.196: Header Float Linkage
16. Disengage safety prop by turning lever (A) downwards
to re lease an d lower s top until lever locks into
vertical position.
17. Repeat for opposite safety prop.
Figure 4.197: Safety Prop
147649 248 Revision A
