SAFETY

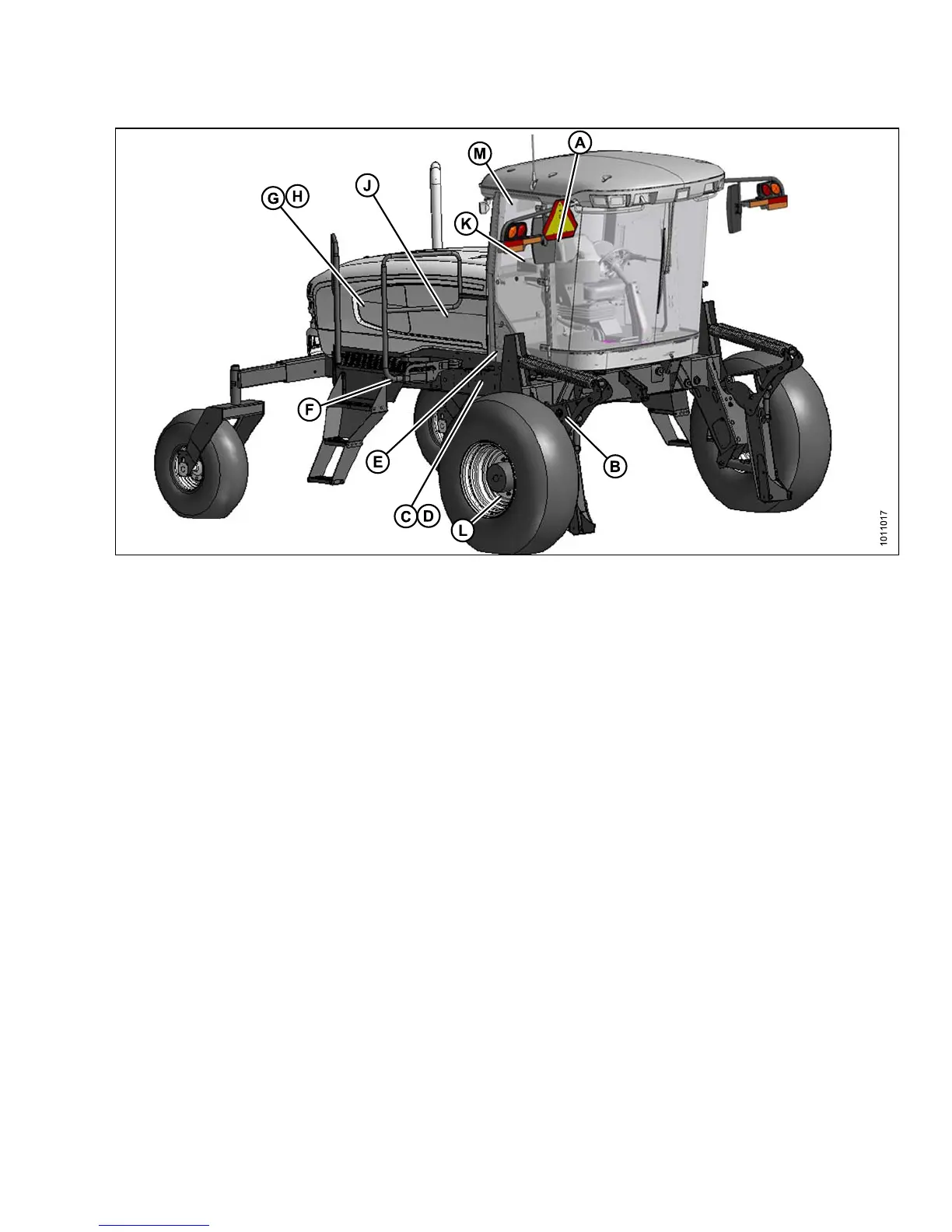

Figure 1.22: Safety Sign Locations (Right Cab-forward Side)
A - Hazard Sign on Seat (MD #115148) B - Lift L inkage (MD #166439) C - Frame (MD #166455)
D - Frame (MD #166456) E - Cab Frame (MD #184372) F - Platform (MD #166425)
G - Shroud (MD #166451) H - Shroud (MD #166452) J - Hydraulic Reservoir (MD #174436)
K - Wiper Cover (MD #166465) L - Rim (MD #166454 [similar to [E]) M - Window (MD #167504)
147649 15 Revision A
