MAINTENANCE AND SERVICING
IMPORTANT:
Clean the area around the plastic cap to ensure
nothing fa lls into gearbox oil reservoir.
5. Clean the area
around the plastic cap on a ccess
hole (A). Remo
ve the cap.
6. Insert the ba
rring tool (B) in to the flywheel housing until
it engages th
eringgear.
7. Attach a 1/2 i
n. square drive ratchet or breaker bar
and turn.
8. Remove barr
ing tool (B) and clean oil from around
access hole
.
9. Clean plast
ic cap and reinstall in access hole (A) with
silicone s
ealant.
IMPORTANT
:
BATTE RY IS
NEGATIVE GROU NDE D. Always
connect st
arter cable to the positive (+) terminal
of batter
y and battery ground cable to negative
(-) termi
nal of battery. Reversed polarity in
battery o
r alternator may result in permanent
damage to
electrical system .

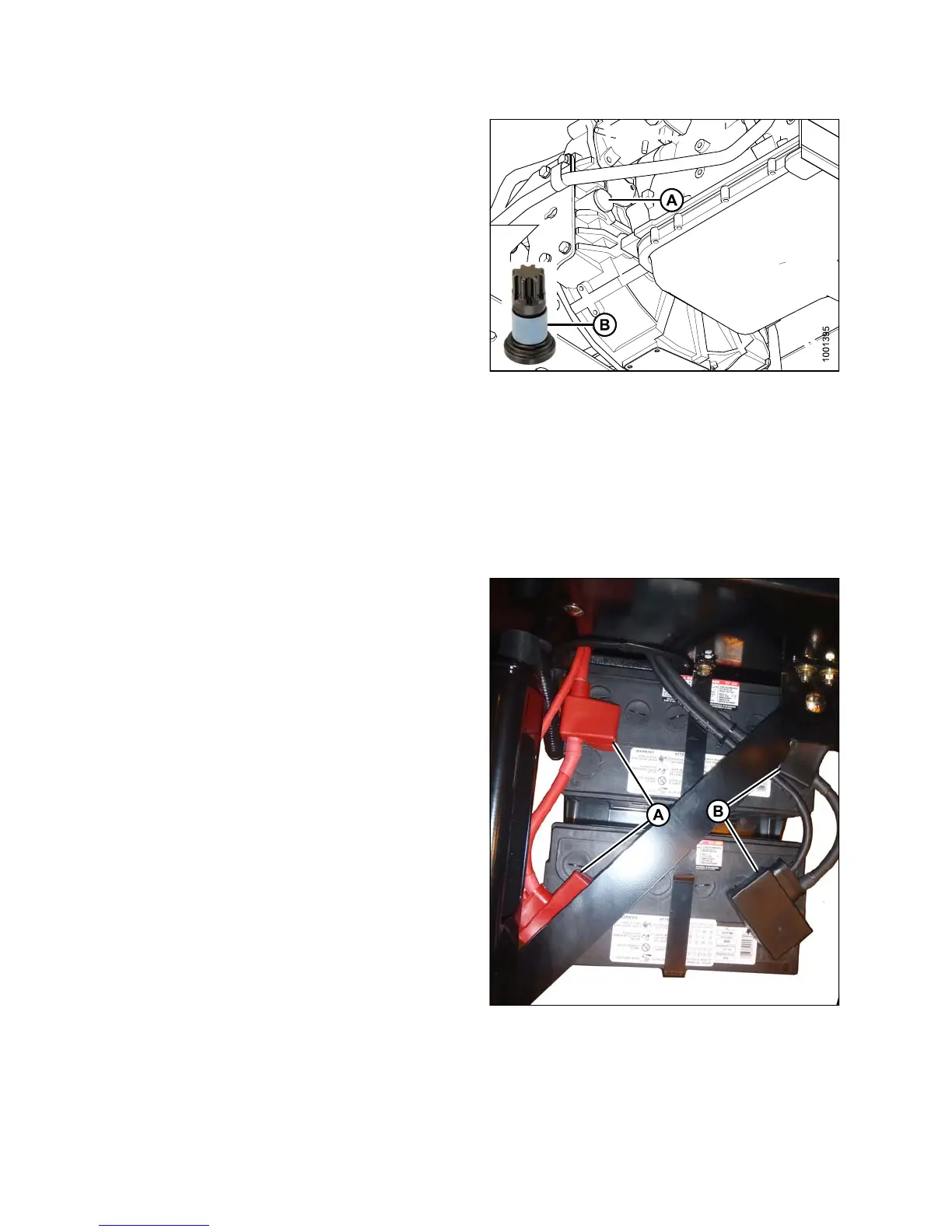

Figure 5.51: Access Hole Location for
Barring Tool
10. Attach negative (black) cables (B) to negative posts
on batteries, and tighten clamps. Then attach
positive (red) cables (A) to positive post on batteries
and tighten clamps.
11. P osition plastic covers onto clamps.
12. Close the hood, refer to 5.2.2 Closing Hood (Lower
Position), page 307.
13. Close platform, refer to 5.3.2 Closing Platforms
(Standard Position), page 310.
Figure 5.5
2: Battery Terminal Location
147649 334 Revision A
