PRODUCT OVERVIEW
Tire Size
Wheel Position
Tread (A)
in. (mm)
Hubs (B)
in. (mm)
Tires (C)
in. (mm)
Inner/outer
(shipping)
126-1/8 (3203) 140-9/16 (3571) 149-5/16 (3793)
Outer/outer 133-3/16 (33
83)
147-11/16 (3
751)
156-7/16 (39
73)
23.1-26 turf t
ires
Inner/inner 119 (3023) 133-1/2 (3391) 142-1/4 (3613)

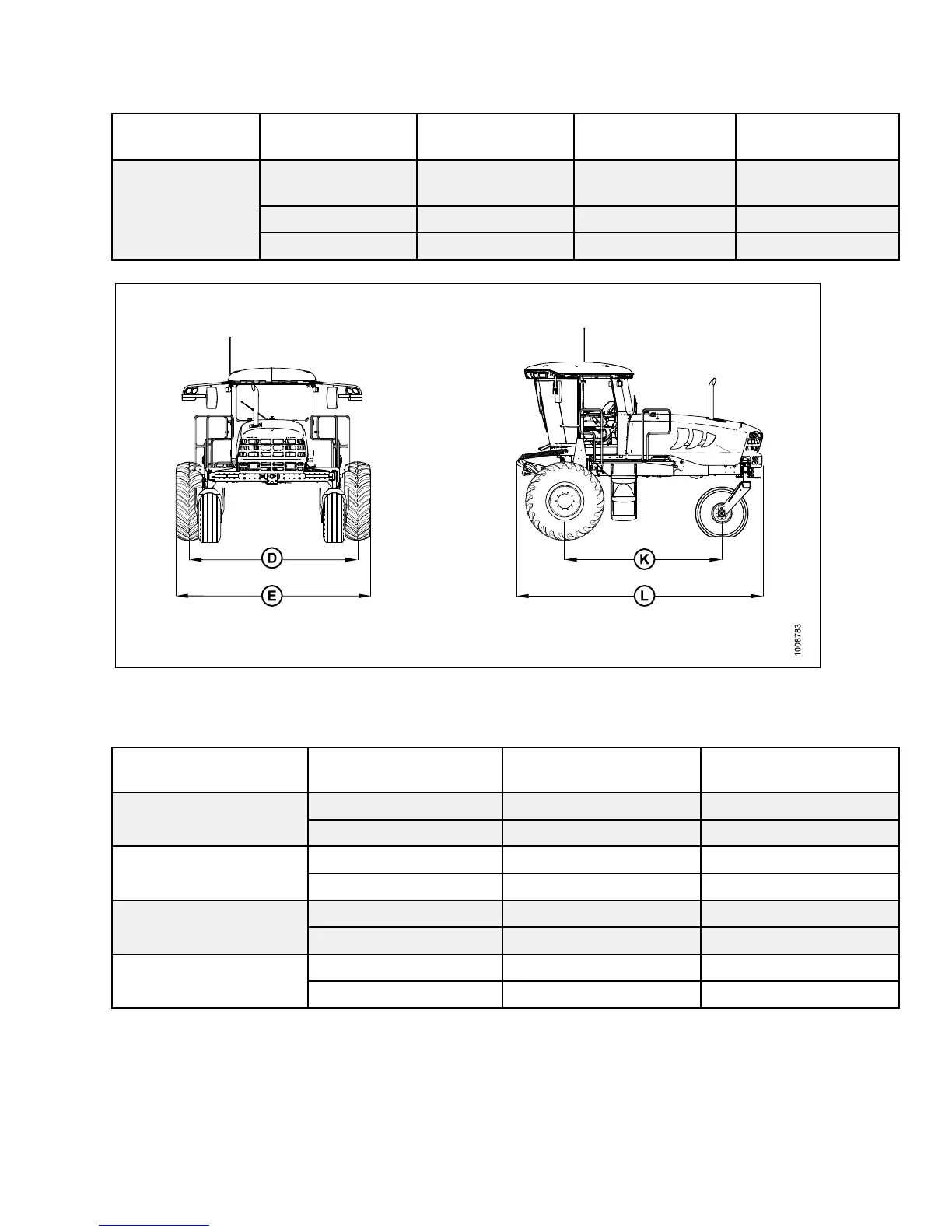

Figure 2.2: Windrower Dimensions – Engine Forward
D - Caster Tire Tr ead E - Caster Tire Casters K - 120-9/16 in. (3064 mm) L - 186-7/8 in. (4747 mm)
Table 2.3 Caster Tires
Tire Size
Wheel Position
Tread (D)
in. (mm)
Casters (E)
in. (mm)
Minimum
96-7/16 (2448) 118-15/16 (3032)
7.5-1
6SL
Maximum
135-11/16 (3448) 158-3/4 (4032)
Minimum
96-7/16 (2448) 118-15/16 (3032)
10-16 formed caster
Maximum
135-11/16 (3448) 158-3/4 (4032)
Minimum
96-7/16 (2448) 118-11/16 (3014)
10-16 forked caster
Maximum
135-11/16 (3448) 158 (4014)
Minimum
96-7/16 (2448) 118-11/16 (3014)
16.5 x 16.1
Maximum
135-11/16 (3448) 158 (4014)
147649 35 Revision A
