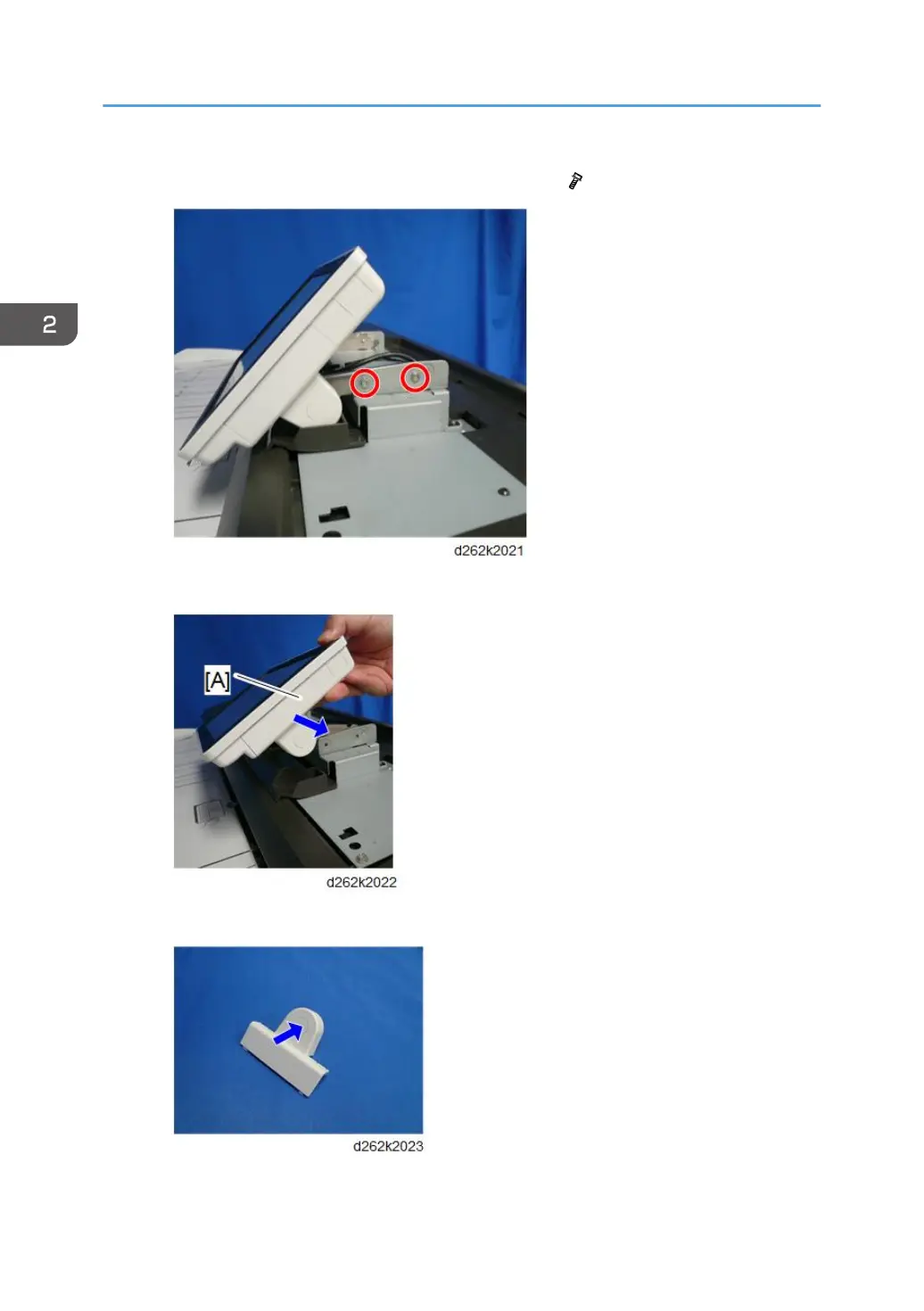

4. Screws on the right bracket of the operation panel ( x2).

5. Right cover [A] of the operation panel.

6. Center part of the removed cover.

7. Attach the ferrite core [A] to the USB cable.

2. Installation

172
