Ricoh MP CW2201 Service Manual

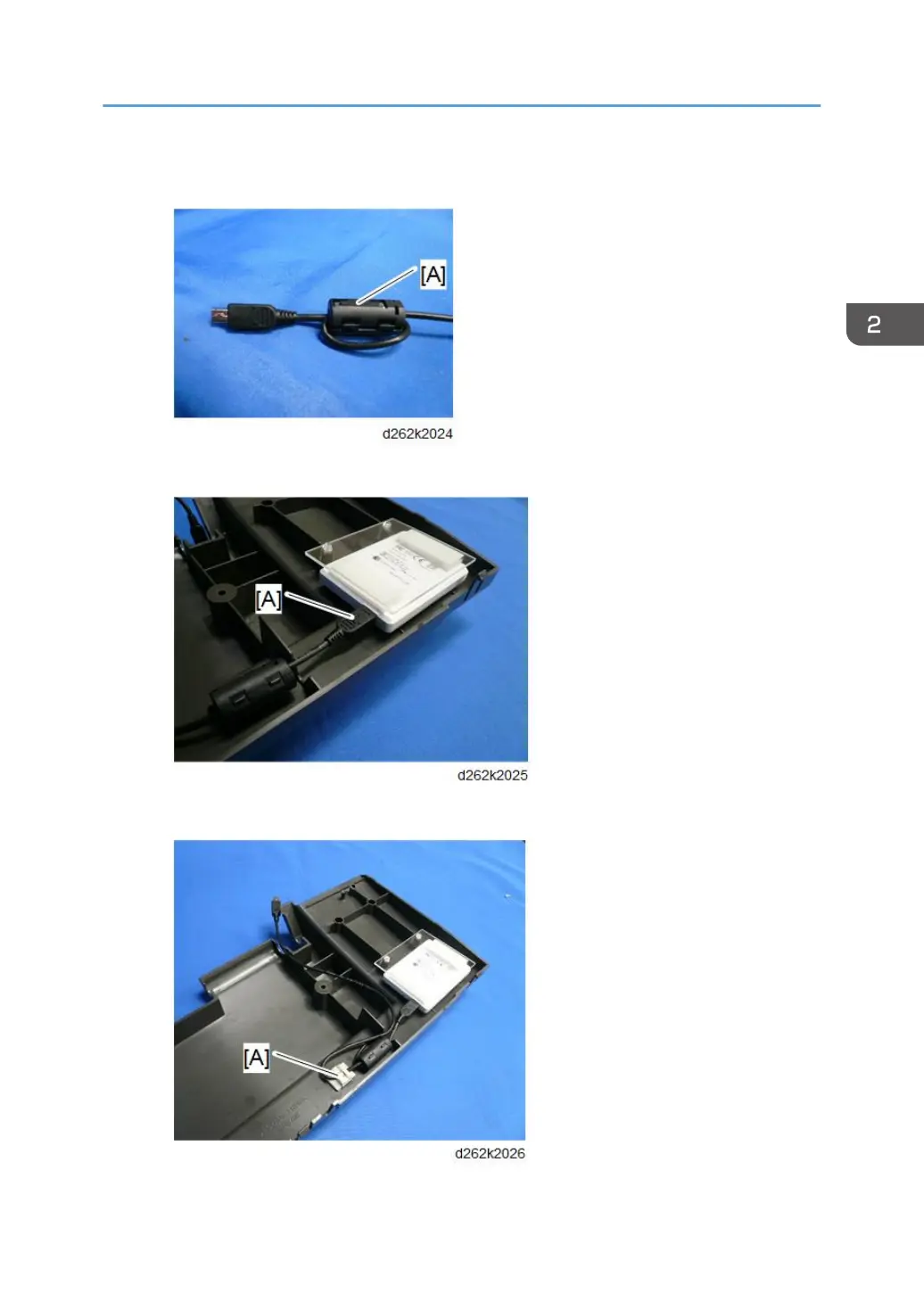

Loop the cable around the core once.
8. Connect the USB connector [A] to the IC card.
9. Secure the cable with the clamp [A] and dress it as shown.
Controller Options
173

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
