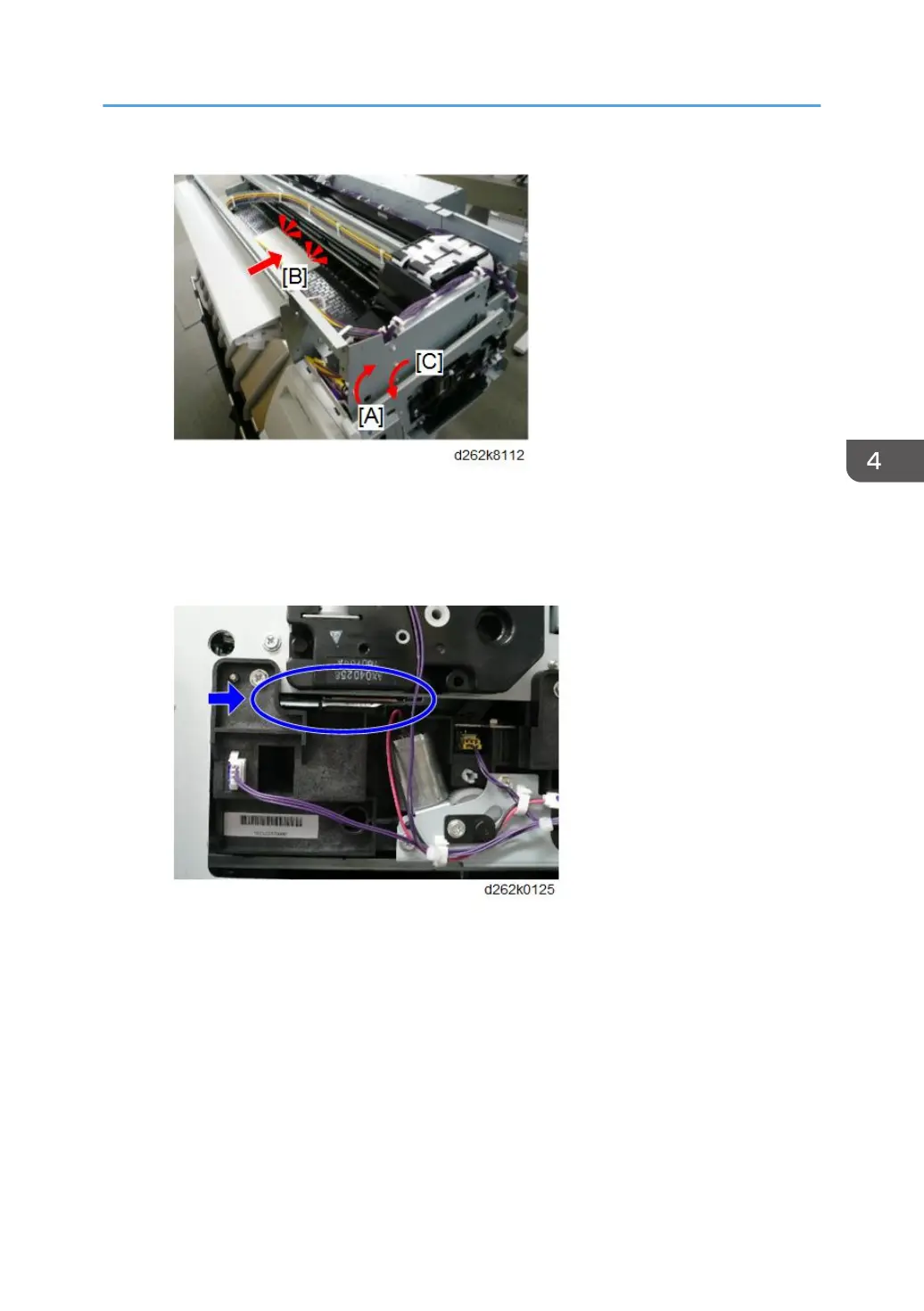

5. Check the gap on the right side of the maintenance unit.
• There will be no gap if the cleaning unit is forward and the suction cap is up. Go to the
next step to lower the suction cap. Normally, the suction cap will be up.
• There will be a gap if the suction cap is already down. Go to Step 7.
6. Set a screwdriver in hole [A] and rotate it counter-clockwise to lower the suction cap.
Use a flashlight to confirm that the suction cap is down.
Common Procedures
271
