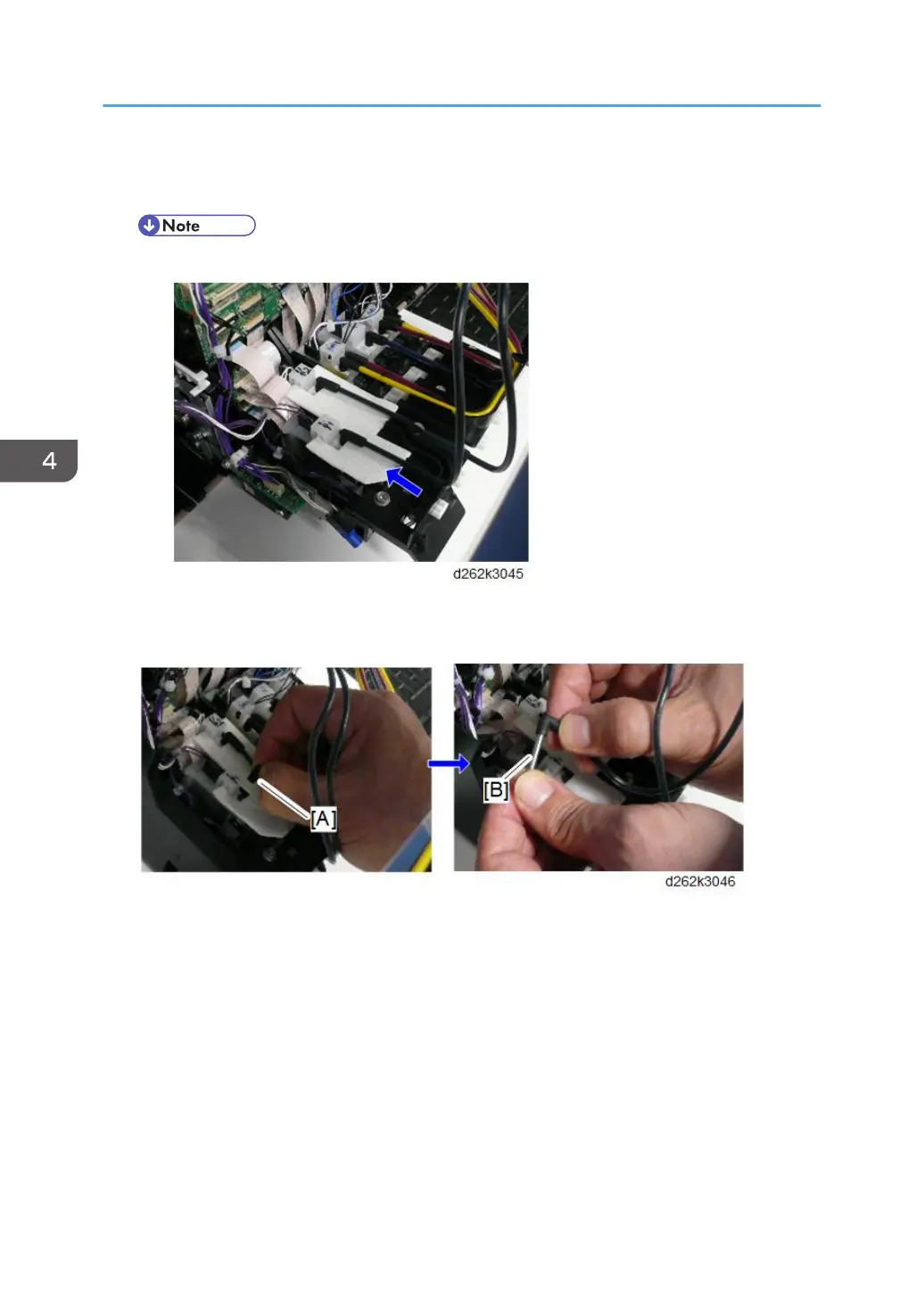

9. Attach the protective sheet enclosed in the new print head unit to the print head to be
removed.
• The protective sheet shields the main unit and its surroundings from ink spills.
10. Remove the ink tube (K1) from the ink supply port of the print head [A] and attach the
plug to the joint of the ink tube (K1) [B].
