Ricoh MP CW2201 Service Manual

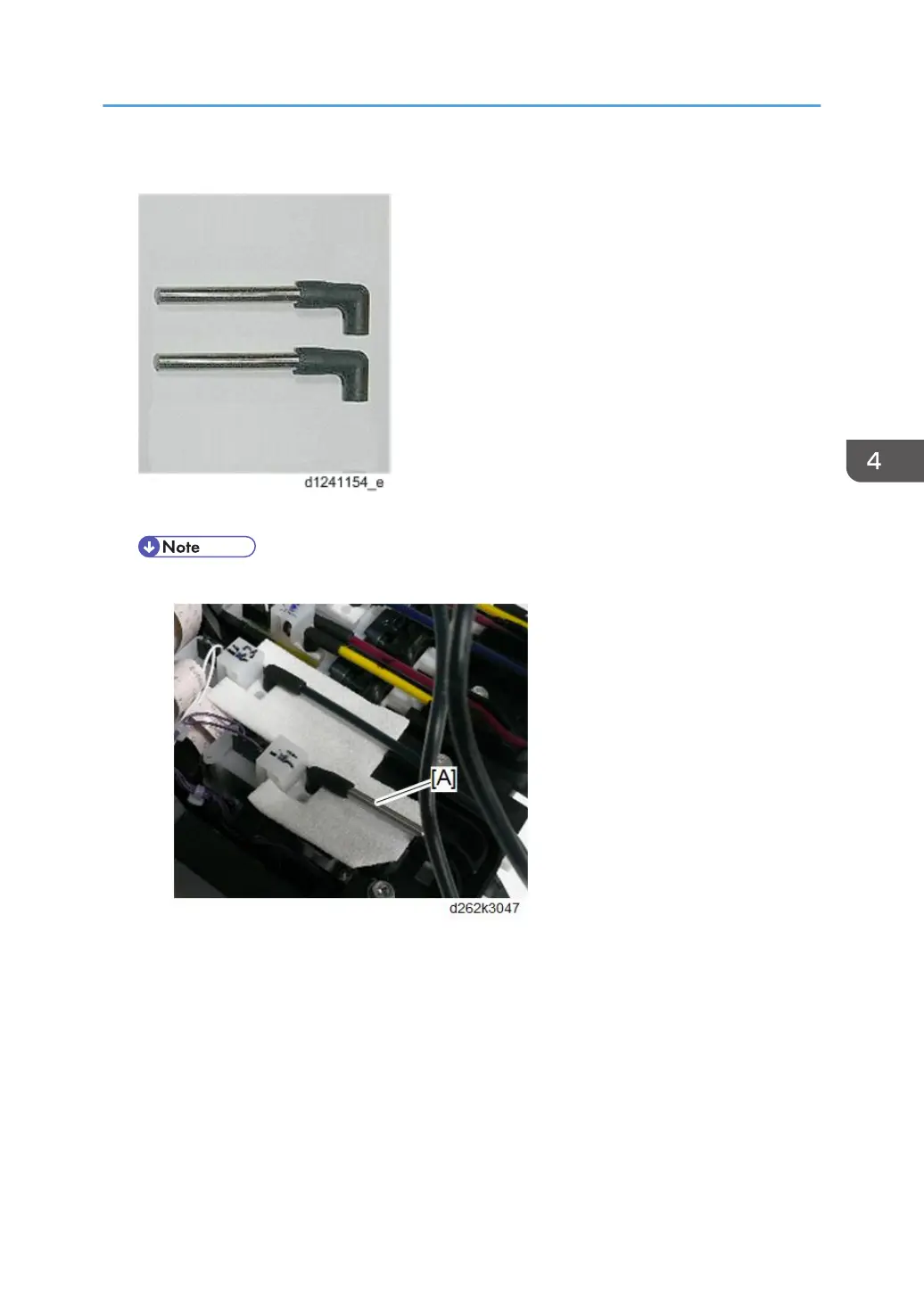

11. Take two plugs (capped) of the accessories of the new print head unit.
12. Attach the plug (capped) [A] to the ink supply port of the print head to be removed.
• The cap prevents the ink leakage from the ink supply port.
13. Remove the ink tube (K2) from the ink supply port of the print head and attach the plug to
the joint and the plug (capped) to the ink supply port of the removed ink tube (K2).
Carriage Unit
435

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
