Ricoh MP CW2201 Service Manual

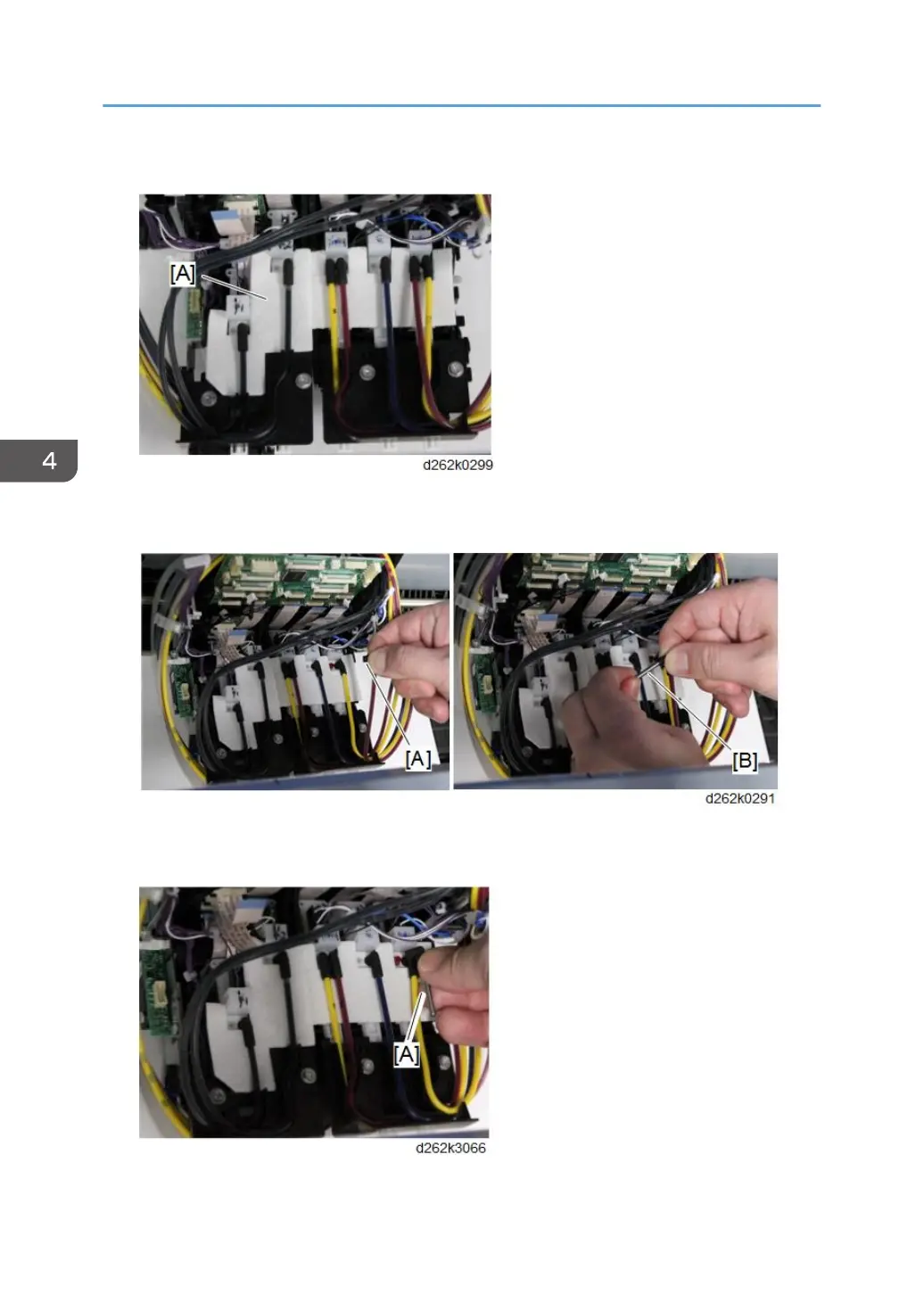

16. Attach the protective sheet [A] to the new print head.
17. Remove the ink tube (M2) [A] from the ink supply port of the print head, and attach the
plug [B] to the ink tube port.
18. Attach the plug (capped) [A] to the ink supply port from which the ink tube (M2) was
removed.
4. Replacement and Adjustment
494

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
