Ricoh MP CW2201 Service Manual

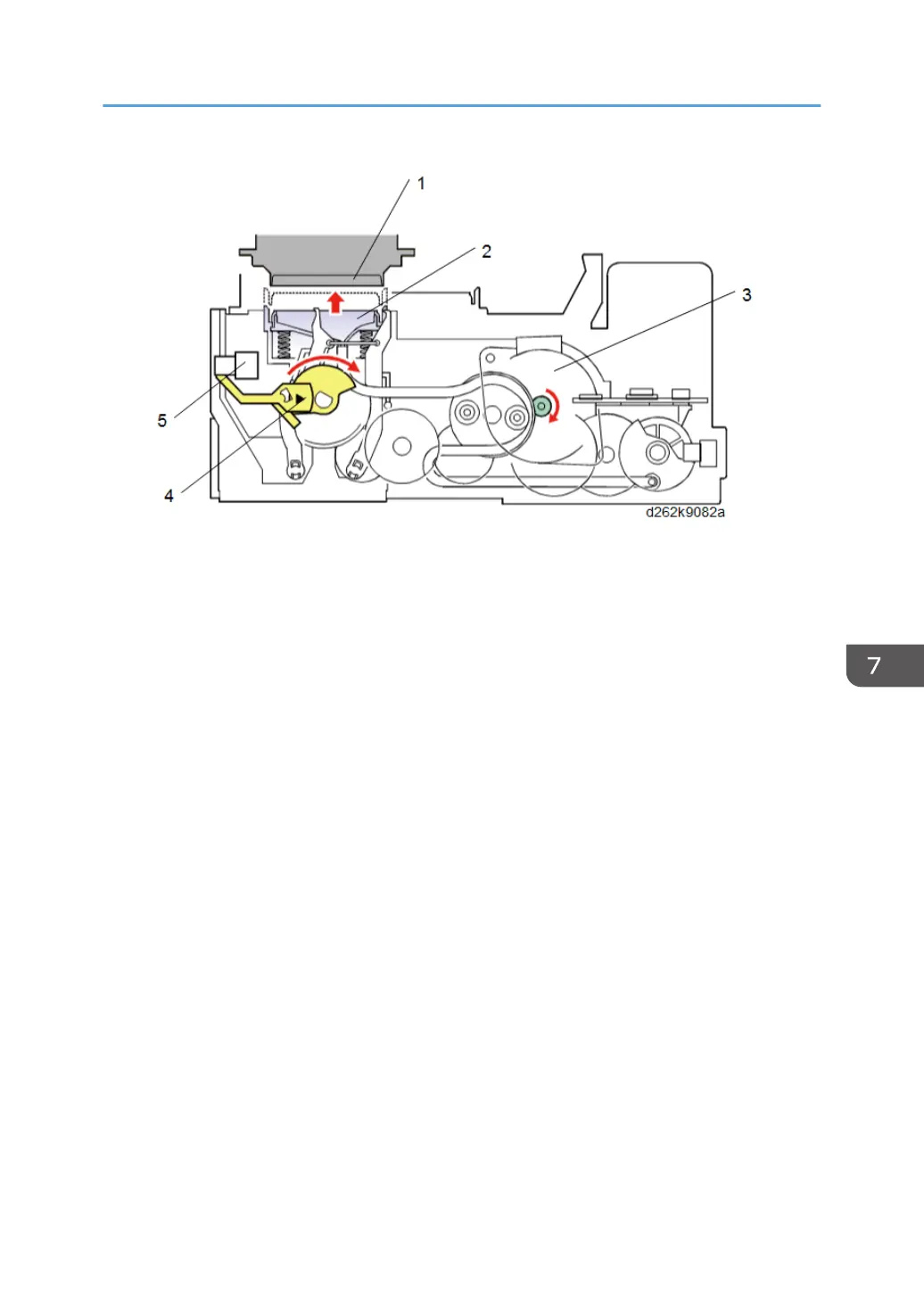

• The carriage moves to the left and stops, with the print head (1) to be cleaned directly above the
suction cap (2).
• The maintenance motor (3) rotates forward and raises the suction cap.
• The suction cap actuator (4) (attached to the shaft with the cam driven by the maintenance motor to
raise the suction cap) and suction cap sensor (5) signal the machine to turn off the motor when the
cap is up and sealed on the print head.
Step 3: Suction
Printing
859

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
