boards.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
3-265
Boards for HiPath 3000
Peripheral Boards
Seven-segment display H1
The board statuses listed in the following table are displayed on H1.

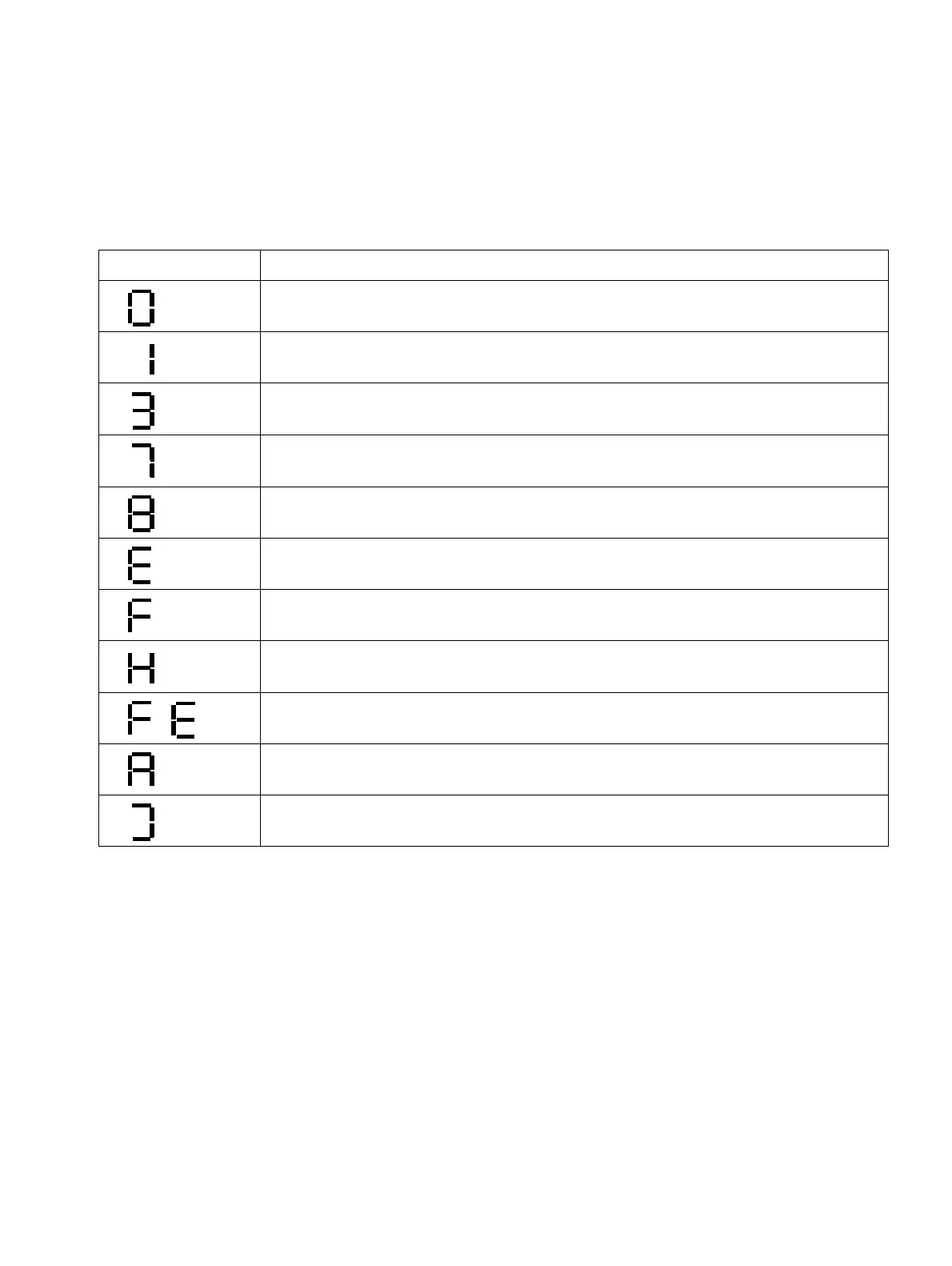

Table 3-122 TMCAS - Seven-Segment Display H1
Display Meaning
Waiting for the TMCAS software download
TMCAS software download start
TMCAS software download
Writing the TMCAS software/extender software into the flash memory
Loading the TMCAS software/extender software from the flash memory
Waiting for ECGM command (10 s)
Calculating the checksum
No TMCAS software in the flash memory, waiting for reload
Flash memory erased (changing display)
TMCAS board active
TMCAS board active, boot process completed
