Siemens HiPath 3000 Service Manual

inst_h3.fm
P31003-H3550-S403-4-7620, 02/05
HiPath 3000 V5.0, HiPath 5000 V5.0, Service Manual
4-77
Installing HiPath 3000
Installing HiPath 3800
Stripping the open-end cable for the S
0
patch panel
The color codes for open-end cables are provided in Table 4-8.

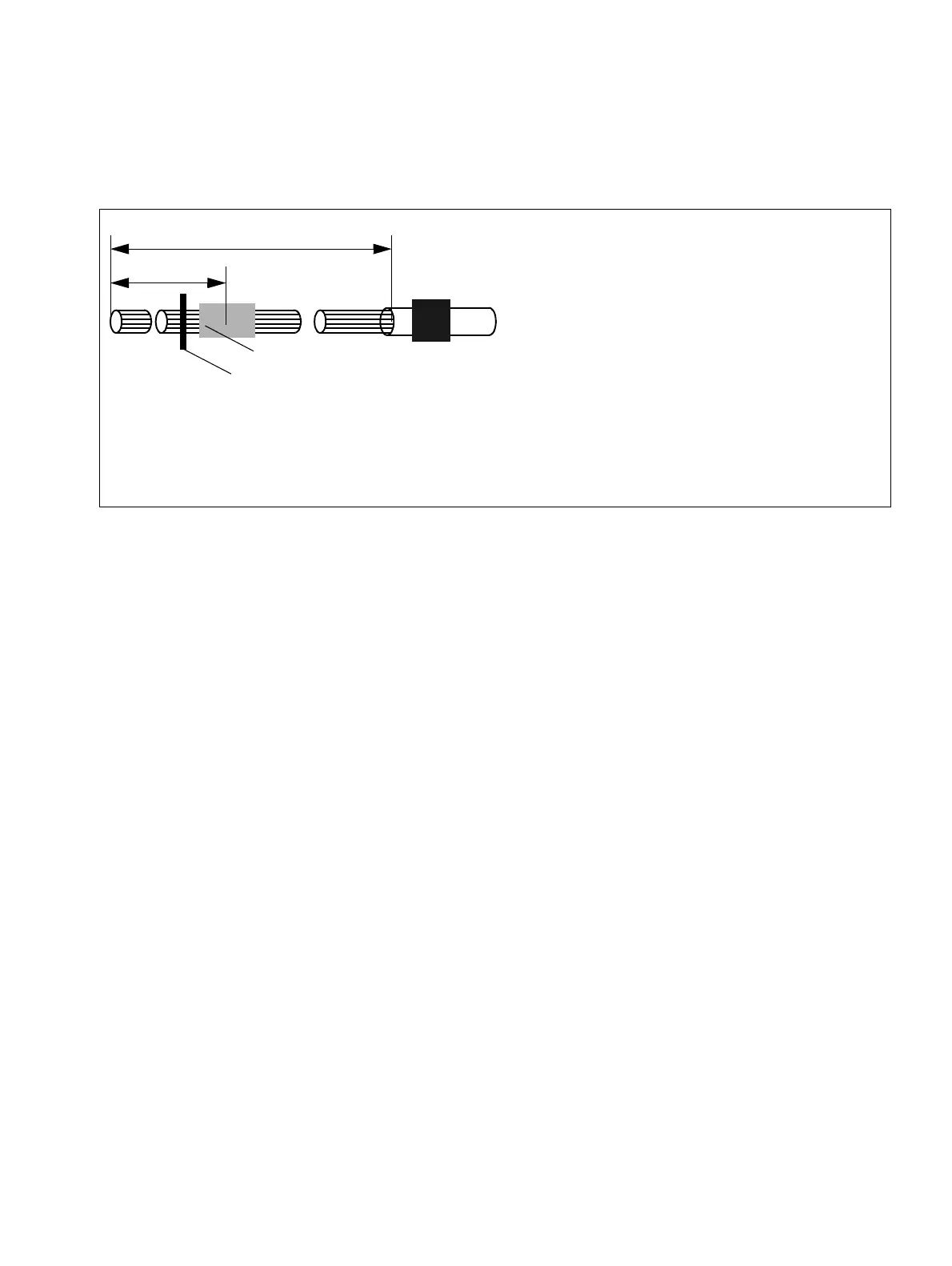

Figure 4-47 Stripping the Open-End Cable for the S
0
Patch Panel
250 ± 5
Stripped length
Velcro tape (19 mm wide)
Bundle fastener
(1)
Cable with film sheath: No. 6 (conductive copper tape) 1.5 windings. Ground wire shortened
to 25 mm and soldered onto conductive tape (1).
Stripped length = 600 mm ± 5 mm
